STANDARD WATER/

OIL TEMPERATURE CONTROLLER

Mold Temperature Controller Series



FEATURE:

1. There are 6 protective devices: auto-exhaust by start-up and auto-cooling byturn-off. Anti-phases, short of phases, water pump protection, overheat and shortof oil level;

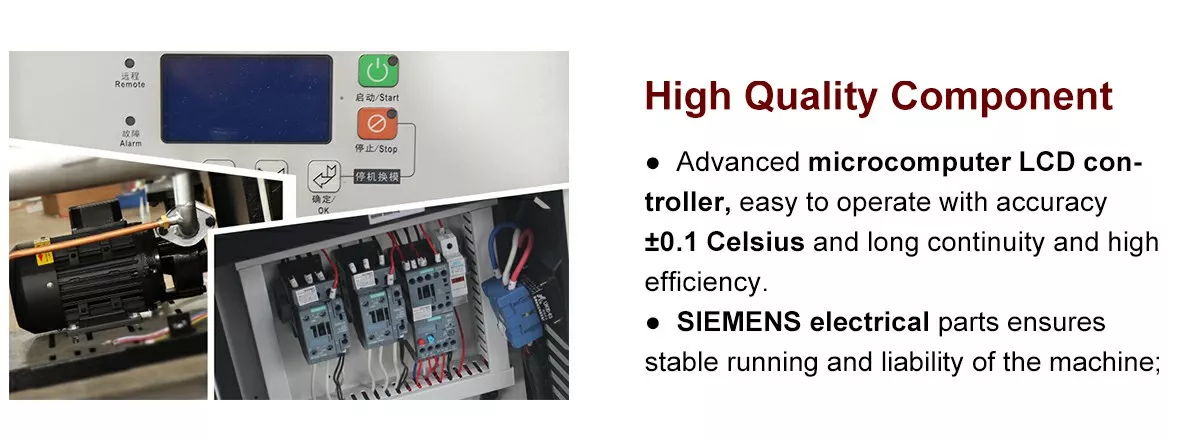

2. LCD screen shows the setting and actual temperature of machine;Stainless steel water tank is durable and keep from the trouble of leakage andrust.;with recycling oil run-way;

3. Optional for RS485 communication function to realize automatic running;moldtemperature controller (temperature control range within 100°C)

4. Oil mold temperature controller (temperature control range within 200°C)









Model

XC-TM6KW-W

XC-TM9KW-W

XC-TM12KW-W

 XC-TM18KW-W XC-TM24KW-W XC-TM36KW-W
Transfer Medium
 Water
Maximum Temperature
 100°C

Pump  (KW)

 0.37
 0.75
 0.75
 1.5 1.5 2.2
Pump Flow (L/min)
 42
 56
 56
 200 200 315
Loading Distance (m) 28
 38
 38
 30 30 30
Heating Power (KW)
 6
 9
 12
 9*2 12*2 12*3
Inlet and Outlet Diameter
 3/8``x2
 3/8``x4 3/8``x4 1''x1 1''x1 1.5``x1
Dimensions (mm)
 615*280*514
 615*280*514 615*280*514 730*400*710 730*400*710 1015*510*880
Approx. Net Weight (KG) 45.5 49 50 73 76 132





Model

XC-TM6KW-O

XC-TM9KW-O

XC-TM12KW-O

 XC-TM18KW-O XC-TM24KW-O XC-TM36KW-O
Transfer Medium Heat Transfer Oil
Maximum Temperature 200°C

Pump  (KW)

 0.37
 0.75
 0.75
 1.5 1.5 2.2
Pump Flow (L/min) 42
 56
 56
 150 150 233
Loading Distance (m) 22
 28
 28
 30 30 30
Heating Power (KW) 6
 9
 12
 9*2 12*2 12*3
Inlet and Outlet Diameter 3/8``x2
 3/8``x4 3/8``x4 1''x1 1''x1 1.5``x1
Dimensions (mm) 615*280*514 615*280*514 615*280*514 730*400*710 730*400*710 1015*510*880
Approx. Net Weight (KG) 49 52.5 55 80 135 193
