Standard Separate-Vacuum Hopper Loader
หมวดหมู่สินค้า: Feeding & Conveying
29 พฤศจิกายน 2567
ผู้ชม 10 ผู้ชม
product description

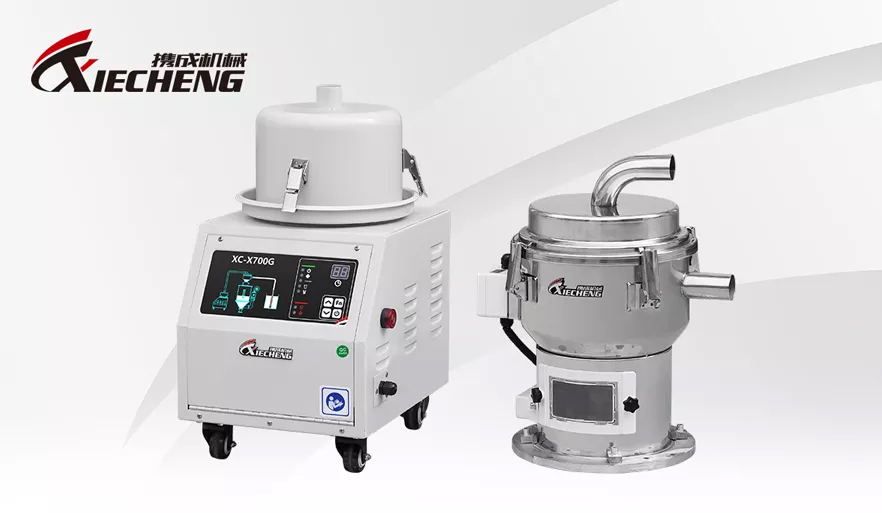

STANDARD SEPARATE-VACUUM HOPPER LOADER
Feeding & Conveying Series
FEATURE:

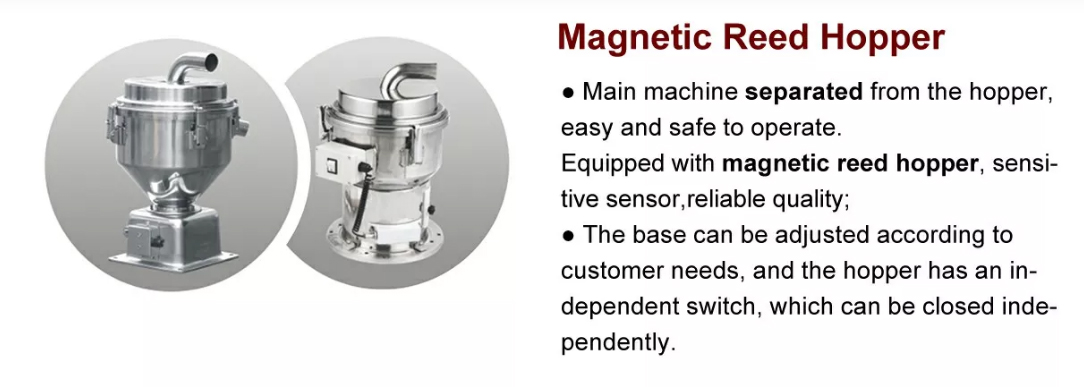

1. Main machine separated from the hopper, easy and safe to operate;

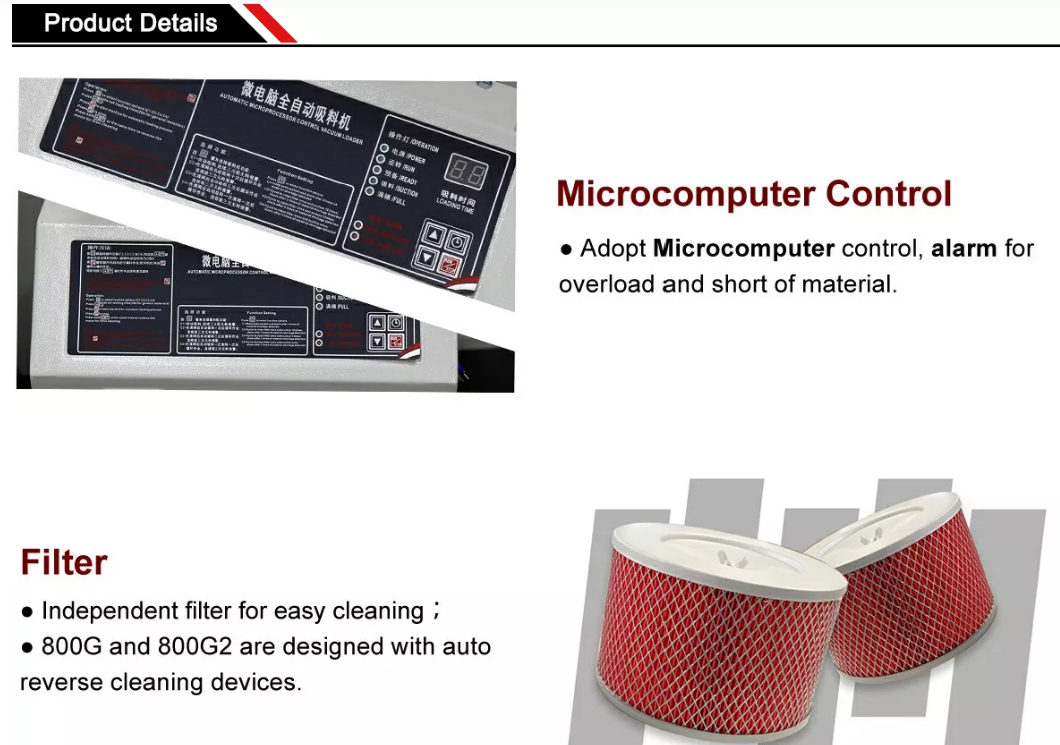

2. Independent filter for easy cleaning;
3. Stainless steel hopper;
4. Microcomputer control;
5. Alarm for overload and short of material;
6. 700G equipped with high-speed rectifier motor with delicate size and strong suctionforce--suitable for new materials;
7. 800G/800G2 with induction high pressure pump-with low noise and long service time;
| Model | XC-X700G | XC-X800G | XC-XF800G2 | |
| Motor | Model | Carbon Brush | Induction | Induction |
| Specification | 1.1kw/1.3hp 1φ | 1.1kw/1.5hp 3φ | 1.5kw/2hp 3φ | |
| Conveying Capacity (kg/hr) | 310 | 450 | 500 | |
| Loading Distance (m) | 4 | 4 | 5 | |
| Static Wind Pressure (mm/H2O) | 1550 | 1800 | 2400 | |
| Storage Tank Capacity (L) | 7.5 | 7.5 | 7.5 | |
| Conveying Tuber Inner Diameter (mm) | φ38 | φ38 | φ38 | |
| The Attached Hoses (mm) | φ38mm×8m 1pc | φ38mm×8m 1pc | φ38mm×10m 1pc | |
| Dimensions (cm) | Main Frame | 37x30x56 | 45x38x67 | 45x38x67 |
| Hopper | 38x28x45 | |||
| Approx,Net Weight(kg) | 26 | 48 | 48.5 | |
