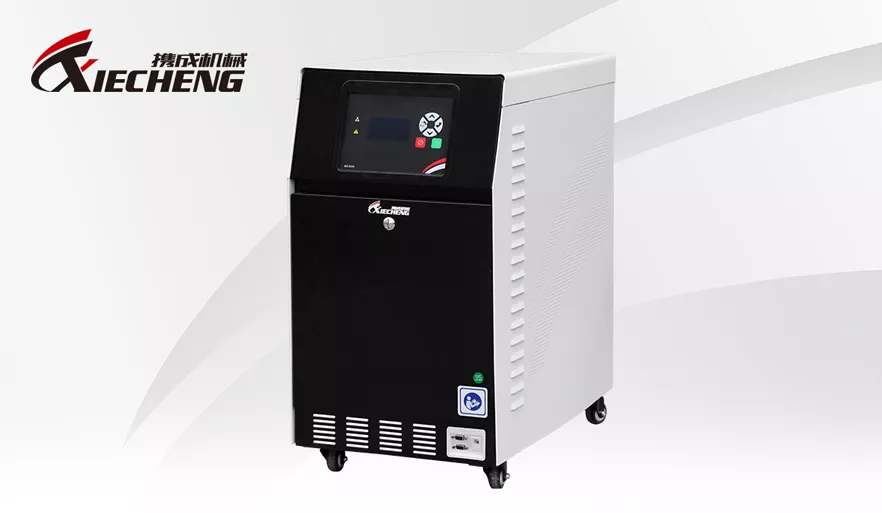

HIGH TEMP. HIGH PRESSURE WATER MTC
Mold Temperature Controller Series
Feature:
-
Adopted with high efficiency water pump. lt can keep accurate temperature level and is adaptable for production with precise molding.
-

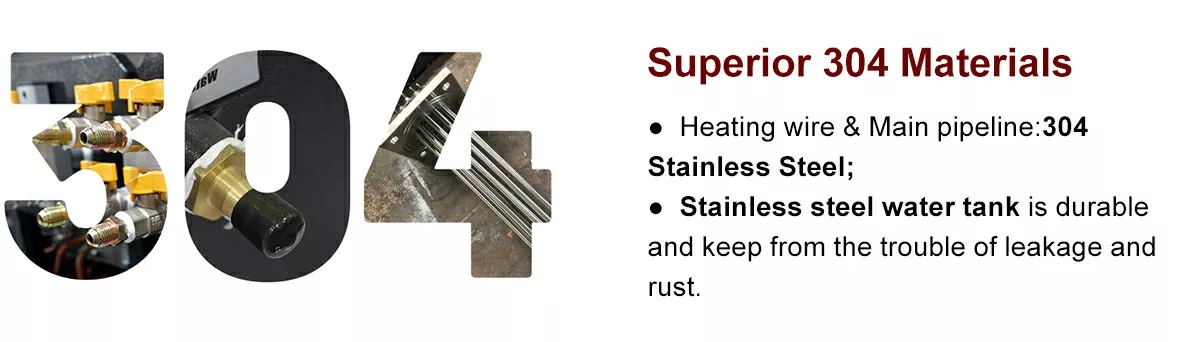

Main pipes are made of 304 stainless steel seamless tubes;
-
Temperature control range within 180℃ (Optional for magnetic pump).
-
Adopts indirect cooling method, which makes temperature controller more preciseand realizes fast heat exchange.
-
Adopts magnetic pump with stable performance and no leakage.
-
Water manifolds and Teflon hose are optional.
| Model |
XC-TM9KW-HTW |
XC-TM12KW-HTW |
XC-TM18KW-HTW |
XC-TM9KW-HTHPW | XC-TM12KW-HTHPW | XC-TM18KW-HTHPW | |
| Temperature Control Range (°C) |
160°C | 180°C | |||||
| Temperature Control Accuracy (°C) |
P.I.D±0.1°C | P.I.D±0.1°C | |||||
| Power Supply | AC3Φ380V/50HZ | AC3Φ380V/50HZ | |||||
| Heat Transfer Medium |
Water |
||||||
| Cooling Method |
Indirect cooling | ||||||
|
Heating Power (KW) |
9 |
12 |
9x2 |
9 | 12 | 9x2 | |
| Pump Power (KW) | 0.75 |
0.75 |
1.5 |
0.5 | 1.1 | 1.1 | |
| Maximum Pump Flow (L/min) | 135 |
135 |
235 |
30 | 50 | 50 | |
| Maximum Pump Pressure (KG/cm²) | 2.5 |
2.5 | 2.5 | 3.5 | 3.5 | 3.5 | |
| Alert Function |
Phase loss/water shortage/over temperature/overload | ||||||
| Cooling Water Pipe (mm) |
12 |
12 | 12 | 12 | 12 | 12 | |
| Circulating Water Pipe (inch) | (4x4)3/8 | (4x4)3/8 | (1x1)1'' | (4x4)3/8 | (4x4)3/8 | (1x1)1'' | |
| Dimensions (mm) | 730x400x710 | 730x400x710 | 1015x510x880 | 730x400x710 | 730x400x710 | 1015x510x880 | |
| Approx.Net Weight (KG) | 83 | 86 | 130 | 85 | 88 | 135 | |
