Working Principle

When the air cooled chiller starts, the refrigerant absorbs the heat from the cooled object in the evaporator and vaporizes. The compressor continuously extracts the generated gas from the evaporator and compresses it into high-temperature, high-pressure vapor. The refrigerant vapor is then sent to the condenser, where it undergoes heat exchange with the air. After releasing heat, it condenses into a liquid. The liquid refrigerant, after being depressurized by the expansion valve, enters the evaporator where it vaporizes again, absorbing heat from the cooled object. This heat exchange process is repeated until the industrial water is cooled to the desired temperature.

|

 Application Scope in the Industry

Chillers are widely used in various industrial productions such as plastics, electronics manufacturing, electroplating, pharmaceuticals, chemical engineering, ultrasonic cooling, and printing. They are employed in the cooling of molds for plastic processing machinery, significantly improving the surface smoothness of plastic products, reducing surface flaws and internal stress, preventing shrinkage and deformation, facilitating mold release, accelerating product shaping, and thus greatly enhancing the production efficiency and product quality of plastic molding machines.

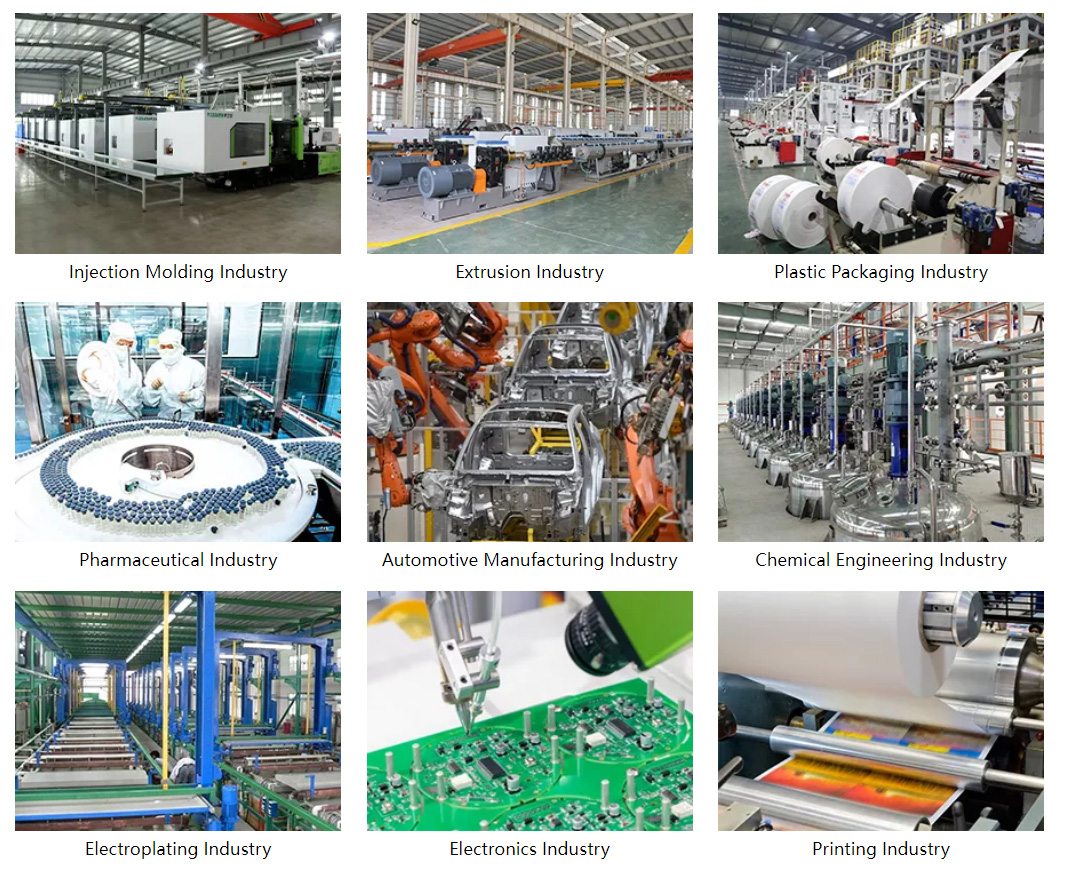

Injection Molding Industry	Extrusion Industry	Plastic Packaging Industry
Pharmaceutical Industry	Automotive Manufacturing Industry	Chemical Engineering Industry
Electroplating Industry	Electronics Industry	Printing Industry

|

 Highlights of the Product

Scroll Compressor

The entire range of Xiecheng air cooled chillers utilizes scroll compressors. The compressor serves as the heart of the entire refrigerant cycle system. The scroll compressor adopts a dual-flex design, ensuring tight sealing between the scroll discs. This design allows the scroll discs to separate radially and axially, allowing debris or liquid to pass through without damaging the compressor. This results in increased compressor lifespan, enhanced reliability, better liquid tolerance, and improved tolerance for impurities.

Characteristics of the compressor:

Operating range

1. Dual-flex design: The compressor features a dual-flex design, ensuring flexibility and reliability in operation. 2. Wide range of product capacity: The compressor is available in a wide range of capacity options, catering to various cooling requirements. 3. High energy efficiency: The compressor is designed for high energy efficiency, optimizing the cooling process and reducing energy consumption. 4. Low noise and vibration levels: With advanced design and precision engineering, the compressor operates with reduced noise and vibration levels, providing a quieter and more comfortable environment. 5. One-touch startup: The compressor is equipped with a user-friendly one-touch startup feature, making operation and startup quick and convenient.

|

 Shell and Tube Evaporator

The air cooled chiller utilizes a shell and tube evaporator. In this system, the refrigerant evaporates inside the heat exchange tubes, while water flows on the shell side. To enhance the heat exchange efficiency, a 2mm thick baffle plate is installed on the shell side, causing the water to flow back and forth to create ice brine. Additionally, to maintain a stable operating temperature, the exterior shell of the evaporator is covered with insulation material.

For the heat exchange tubes, we employ high-efficiency seamless copper tubes. These tubes undergo a grooving process to form internal thread fins, thereby increasing the heat exchange surface area with the refrigerant. With this technology, the heat transfer area is doubled, significantly improving the heat transfer efficiency.

|

 Finned Type Condenser

By adopting a high-efficiency copper tube with aluminum finned type condenser, the air cooled chiller effectively dissipates heat. The finned structure increases the heat exchange surface area between the condenser and the surrounding environment, improving the heat dissipation efficiency. The excellent thermal conductivity of copper tubes, combined with the efficient heat dissipation characteristics of aluminum fins, ensures high efficiency during the cooling process.

Additionally, the application of light water aluminum and blue aluminum foils provides an additional protective layer. They help prevent corrosion of the copper tubes in corrosive environments, thereby extending the lifespan of the condenser and maintaining optimal refrigeration performance.

|

 Product Details



Microcomputer Controller





The air cooled chiller features an industry-leading LCD display microcomputer controller. This controller provides simultaneous display of the chiller's outlet temperature and the set temperature for precise temperature control. The user-friendly interface allows for easy operation and adjustment. With this controller, the water temperature can be precisely controlled within a range of 3°C to 50°C, ensuring optimal cooling performance.













Drying Filter System



The air cooled chiller is equipped with Emerson filters, which effectively remove impurities from the refrigerant and absorb free moisture in fluorocarbons. This system prevents the formation of ice blockages, particularly in narrow sections of pipelines (especially the valve ports of thermal expansion valves). It ensures the purity of the refrigerant and protects the compressor from potential damage.









Efficient Cooling System





The air-cooled chiller is equipped with a high-efficiency cooling system that includes low-noise external rotor fans. These fans are specifically designed to accelerate heat dissipation and enhance the overall cooling efficiency of the system. By improving airflow and maximizing heat transfer, this system ensures optimal cooling performance while operating with minimal noise levels.



High and Low Pressure Protection System



The high and low pressure protection system is designed to enhance the safety and efficiency of water pump operations. It involves the installation of high and low pressure gauges as well as a pump pressure gauge to continuously monitor the pressure of the water pump during operation.



Water Pumps





For chiller models ranging from 1 to 6HP, Orank stainless steel pump heads are used. For models with 8HP or higher, Taiwan Yuanli pipeline pumps are employed. These water pumps are known for their low noise operation, leak-free performance, and maintenance-free characteristics. They ensure reliable and efficient water circulation within the chiller system.



Electrical Self-control System



The electrical self-control system consists of power supply and automatic control components. It utilizes Siemens electronic components to ensure stable operation of the equipment. It incorporates a comprehensive range of safety protection devices, including current overload protection, high and low-pressure protection systems, and electronic time delay. These safety features provide robust protection and are complemented by an intuitive display system that alerts users to any abnormalities.



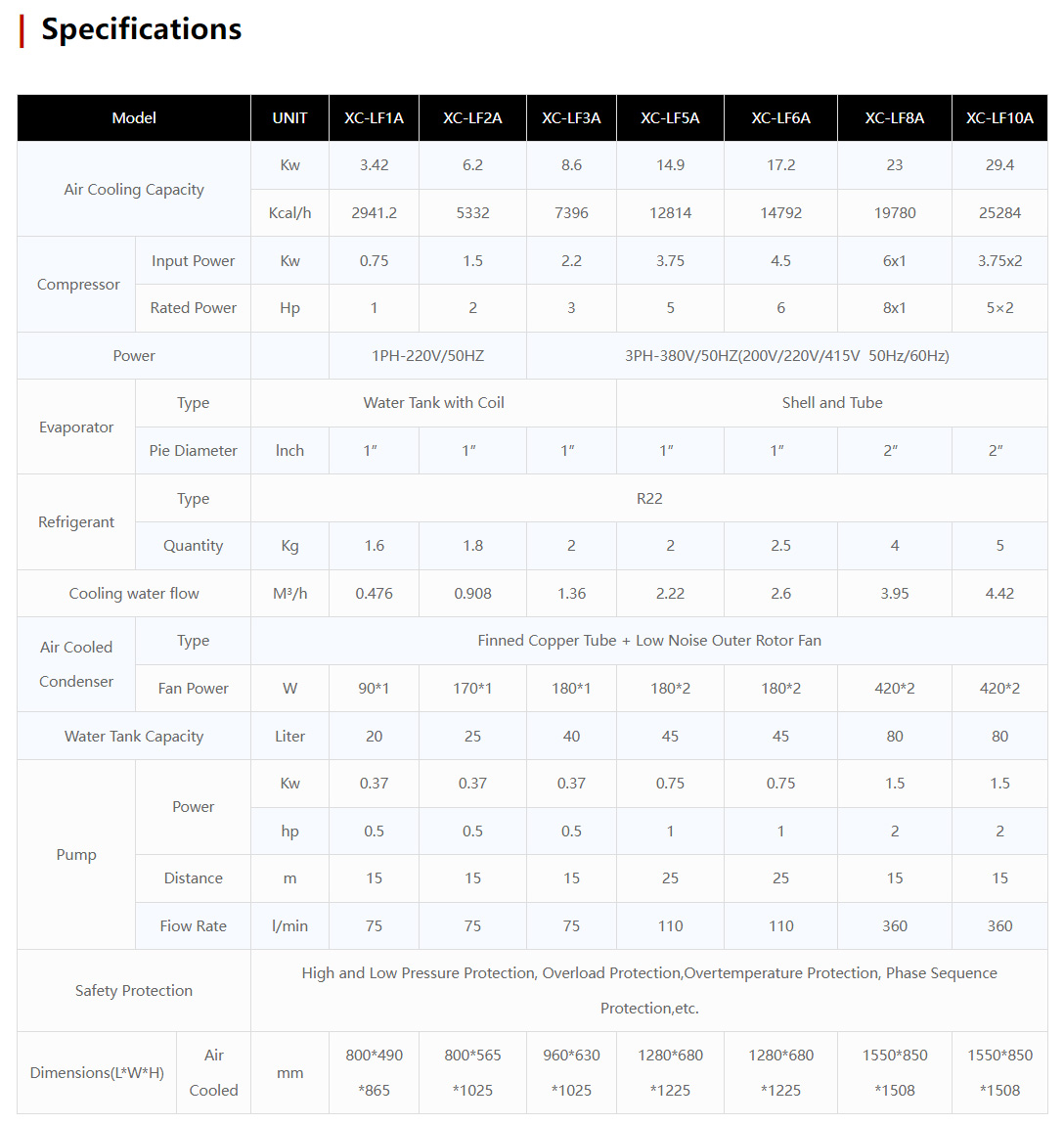

Specifications



Model		UNIT	XC-L15W	XC-L20W	XC-L25W	XC-L30W	XC-L40W	XC-L50W
Water Cooling Capacity		Kw	51.7	66.3	81.2	108	131	162.4
		Kcal/h	44462	57018	69832	92880	112660	139664
Compressor	Input Power	Kw	3.75x3	7.5x2	9x2	7.5x3	7.5x4	9.4×4
	Rated Power	Hp	5×3	10×2	12.5x2	10x3	10×4	12.5×4
Power			3PH-380V/50HZ(200V/220V/415V  50Hz/60Hz)
Evaporator	Type	Water Tank with Coil	Shell and Tube
	Pie Diameter	lnch	2.5”	2.5”	3”	3”	4”	4”
Refrigerant	Type	R22
	Quantity	Kg	7.5	11	11	12	18	18
Water Cooled Condenser	Type	Shell and Tube Condenser
	Pie Diameter	Inch	2”	2”	2.5”	2.5”	3”	3”
Cooling water flow		M³/h	7.1	8.84	10.06	13.6	17.75	21.9
Water Tank Capacity		Liter	100	150	210	210	380	400
Pump	Power	Kw	1.5	1.5	3	3	4	4
		hp	2	2	4	4	5.5	5.5
	Distance	m	16	16	16	16	16	18
	Fiow Rate	l/min	360	360	700	700	700	800
Safety Protection		High and Low Pressure Protection, Overload Protection,Overtemperature Protection, Phase Sequence Protection,etc.
Dimensions (L*W*H)		mm	1470*750 *1413	1880*880 *1650	1880*880 *1650	2050*1000 *1730	2050*1000 *1730	2190*1150 *1840

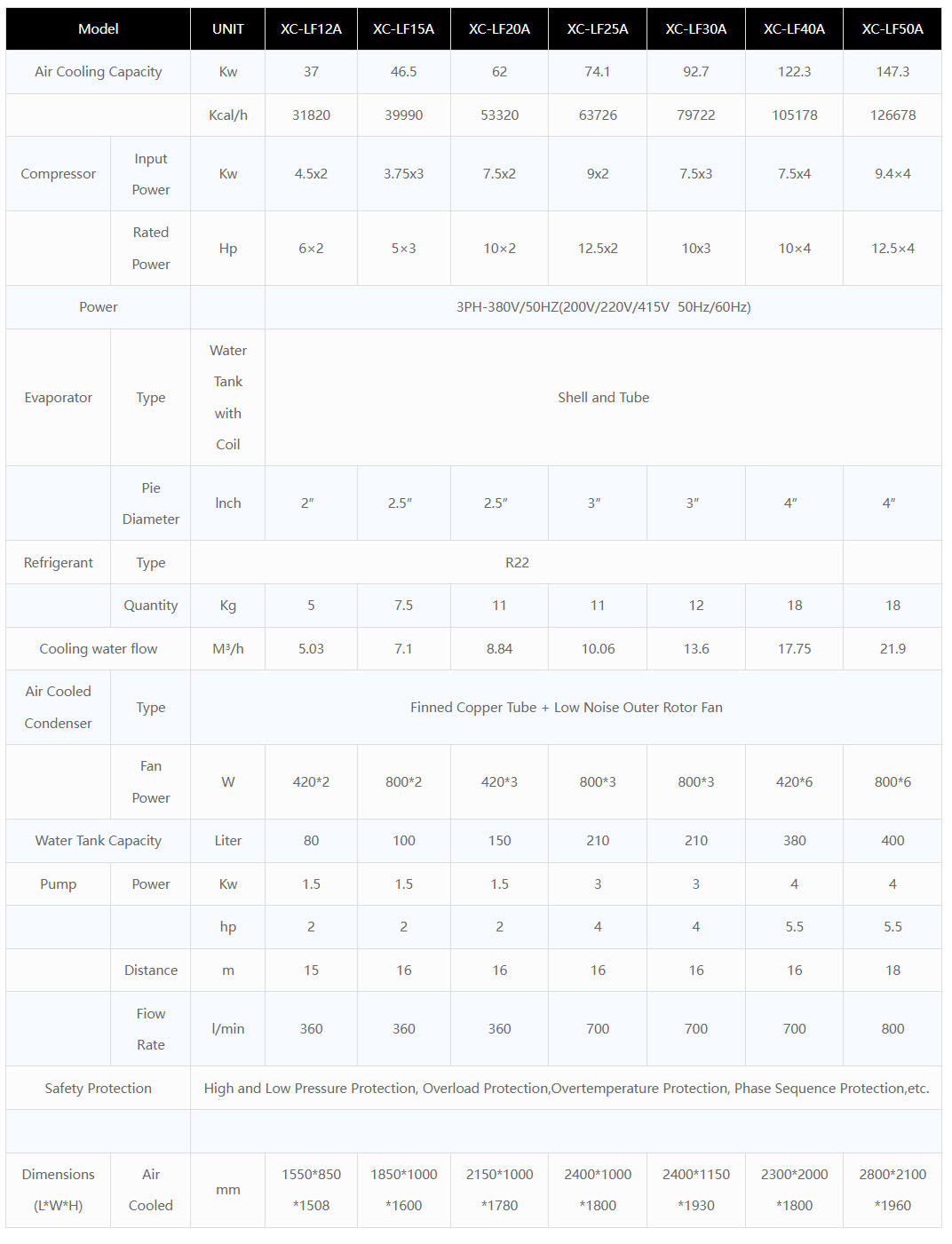

Model		UNIT	XC-LF12A	XC-LF15A	XC-LF20A	XC-LF25A	XC-LF30A	XC-LF40A	XC-LF50A
Air Cooling Capacity		Kw	37	46.5	62	74.1	92.7	122.3	147.3
		Kcal/h	31820	39990	53320	63726	79722	105178	126678
Compressor	Input Power	Kw	4.5x2	3.75x3	7.5x2	9x2	7.5x3	7.5x4	9.4×4
	Rated Power	Hp	6×2	5×3	10×2	12.5x2	10x3	10×4	12.5×4
Power			3PH-380V/50HZ(200V/220V/415V  50Hz/60Hz)
Evaporator	Type	Water Tank with Coil	Shell and Tube
	Pie Diameter	lnch	2”	2.5”	2.5”	3”	3”	4”	4”
Refrigerant	Type	R22
	Quantity	Kg	5	7.5	11	11	12	18	18
Cooling water flow		M³/h	5.03	7.1	8.84	10.06	13.6	17.75	21.9
Air Cooled Condenser	Type	Finned Copper Tube + Low Noise Outer Rotor Fan
	Fan Power	W	420*2	800*2	420*3	800*3	800*3	420*6	800*6
Water Tank Capacity		Liter	80	100	150	210	210	380	400
Pump	Power	Kw	1.5	1.5	1.5	3	3	4	4
		hp	2	2	2	4	4	5.5	5.5
	Distance	m	15	16	16	16	16	16	18
	Fiow Rate	l/min	360	360	360	700	700	700	800
Safety Protection		High and Low Pressure Protection, Overload Protection,Overtemperature Protection, Phase Sequence Protection,etc.
Dimensions (L*W*H)	Air Cooled	mm	1550*850 *1508	1850*1000 *1600	2150*1000 *1780	2400*1000 *1800	2400*1150 *1930	2300*2000 *1800	2800*2100 *1960
