Product Description

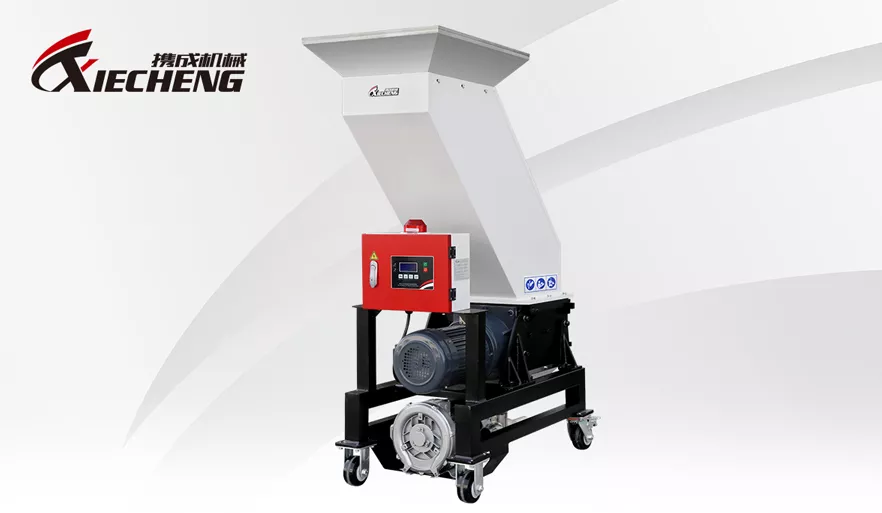

Low Speed Online Granulator
| FEATURES

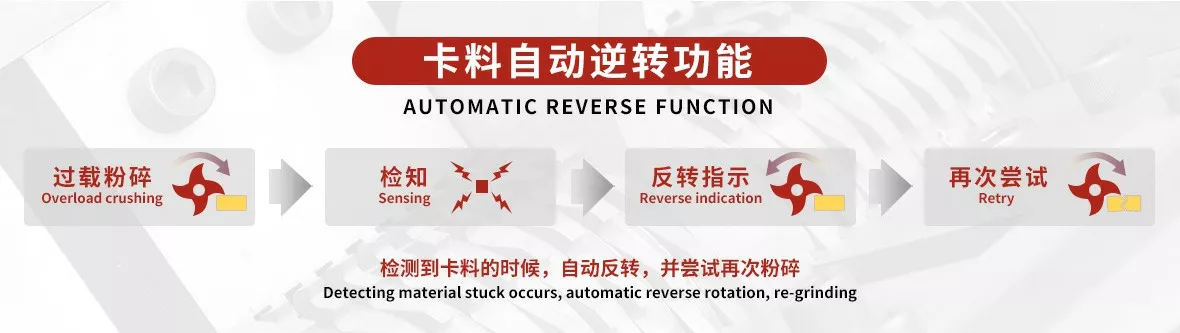

2. Capable of auto reverse running and clearing of jammed materials, all-round protection of the motor;
3. Direct driven reducer ensures stable running;
4. With timing function to turn on or off, saving energy;
5. Controlled by microcomputer, easy operation and maintenance;
6. Double layered soundproof designed feeding hopper, low noise;
7. Fast disassembly and assembly design for processing chamber, easy to clean and maintain;
8. With multiple protections as phase sequence protection, overload protection, limit protection, etc.
9. Configuration is optional on active or passive collecting; passive collecting default with dual material proportional valve and controller.
| Parameters of Low Speed Online Granulator:
|
型号 |
XC-GS2HP |
XC-GS3HP |
XC-GS5HP |
XC-GS2HPRC |
XC-GS3HPRC |
XC-GS5HPRC |
||
|
FeedingHopperSize(mm) |
320x310 |
380x310 |
440x310 |
320x310 |
380x310 |
440x310 |
||
| Grinding Chamber(mm) | 260x310 | 320x310 | 380x310 | 260x310 | 320x310 | 380x310 | ||
| Grinding Capacity(Kg/h) | 22 | 27 | 33 | 22 | 27 | 33 | ||
| Power | KW | 1.5 | 2.2 | 3.7 | 1.5 | 2.2 | 3.7 | |
| Stationary Cutter(Piece) | 2 | 2 | 2 | 2 | 2 | 2 | ||
| Hook Cutter(Piece) | 27 | 33 | 39 | 27 | 33 | 39 | ||
| Mesh Size(mm) | 8 | 8 | 8 | 8 | 8 | 8 | ||
| Dimensions(LxWxH) | 850x500x1500 | 1000x500x1500 | 1150x500x1500 | 850x500x1500 | 1000x500x1500 | 1150x500x1500 | ||
| SpindleSpeed(R/Min) | 140 | 140 | 140 | 140 | 140 | 140 | ||
| BlowerPowerKw(Active Collecting) | / | / | / | 0.37 | 0.37 | 0.37 | ||
| Note | Should be used with auto loader and proportional valve | Equippedwith recycled system | ||||||
| Product Details
