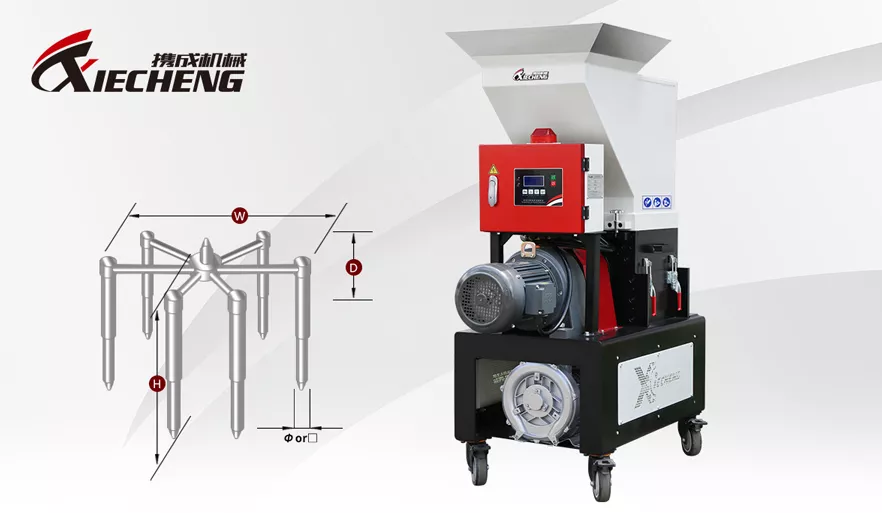

SCREENLESS LOW SPEED GRANULATOR

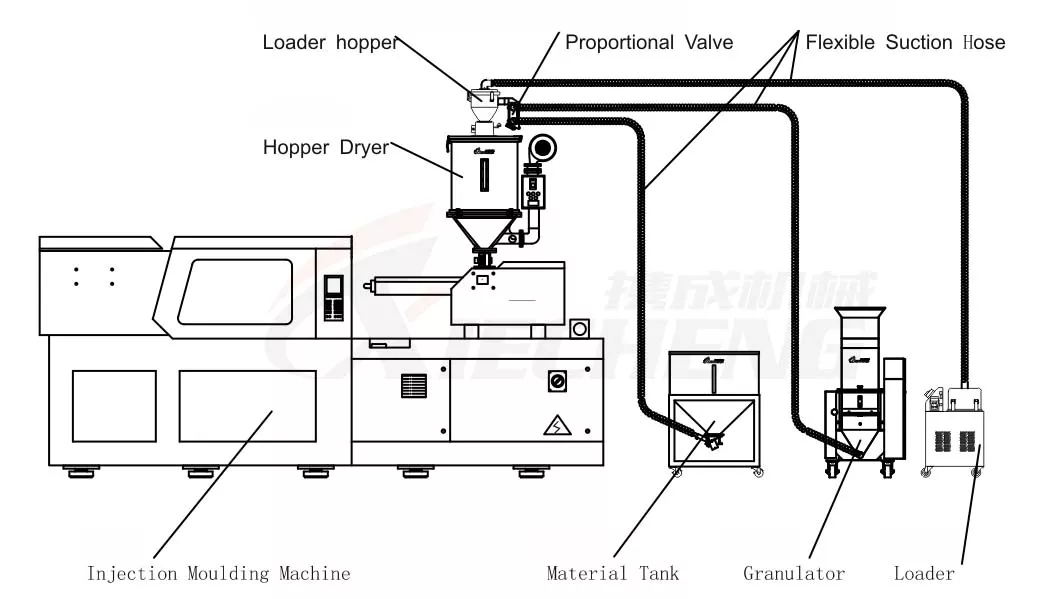

The new generation of low speed granulator is designed to regrind the runners from injection molding machines and recycle directly back into IMM. No screen mesh is needed. It’s a combination of stability, low noise and low powder.
|
Advantages of Low Speed Plastic Crusher:

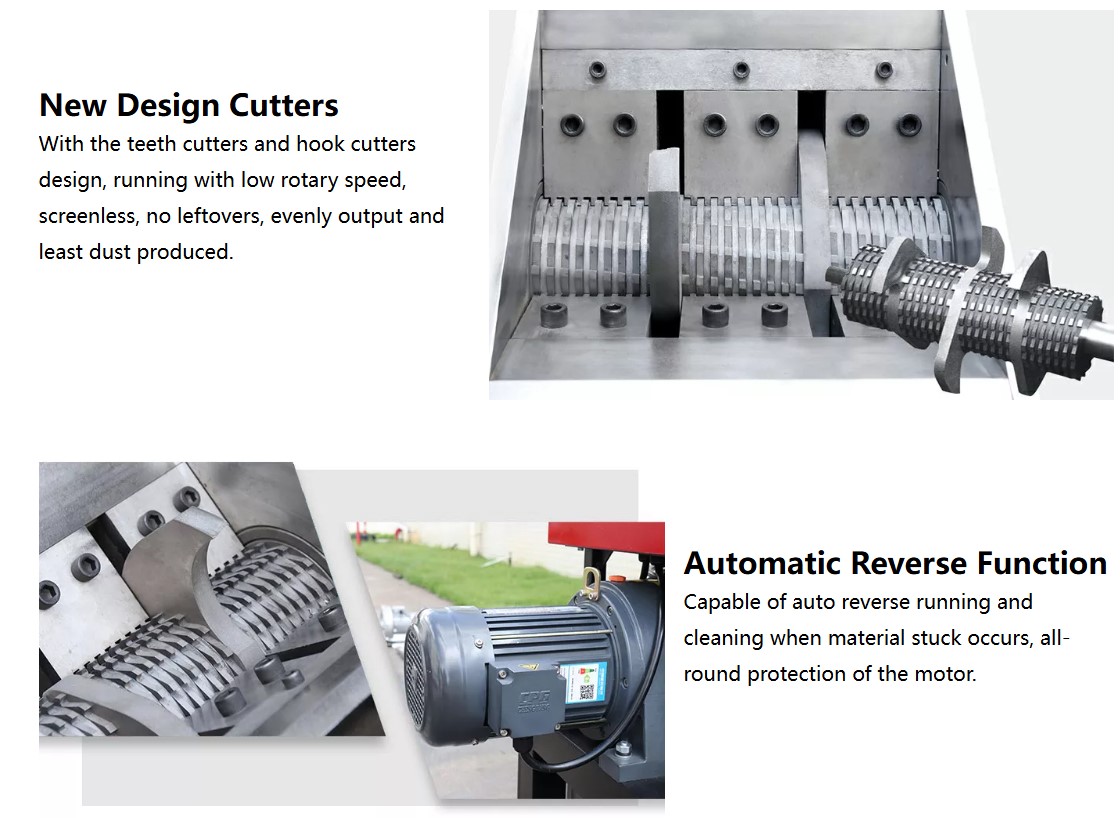

1. With the teeth cutters and hook cutters design, running with low rotary speed, screenless, no leftovers, evenly output and least dust produced;

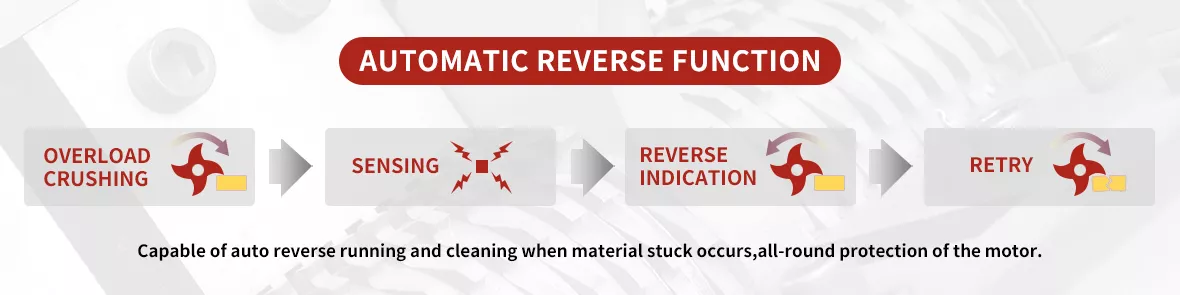

2. Capable of auto reverse running and cleaning when material stuck occurs, all-round protection of the motor;
3. With timing function to turn on or off, saving energy;

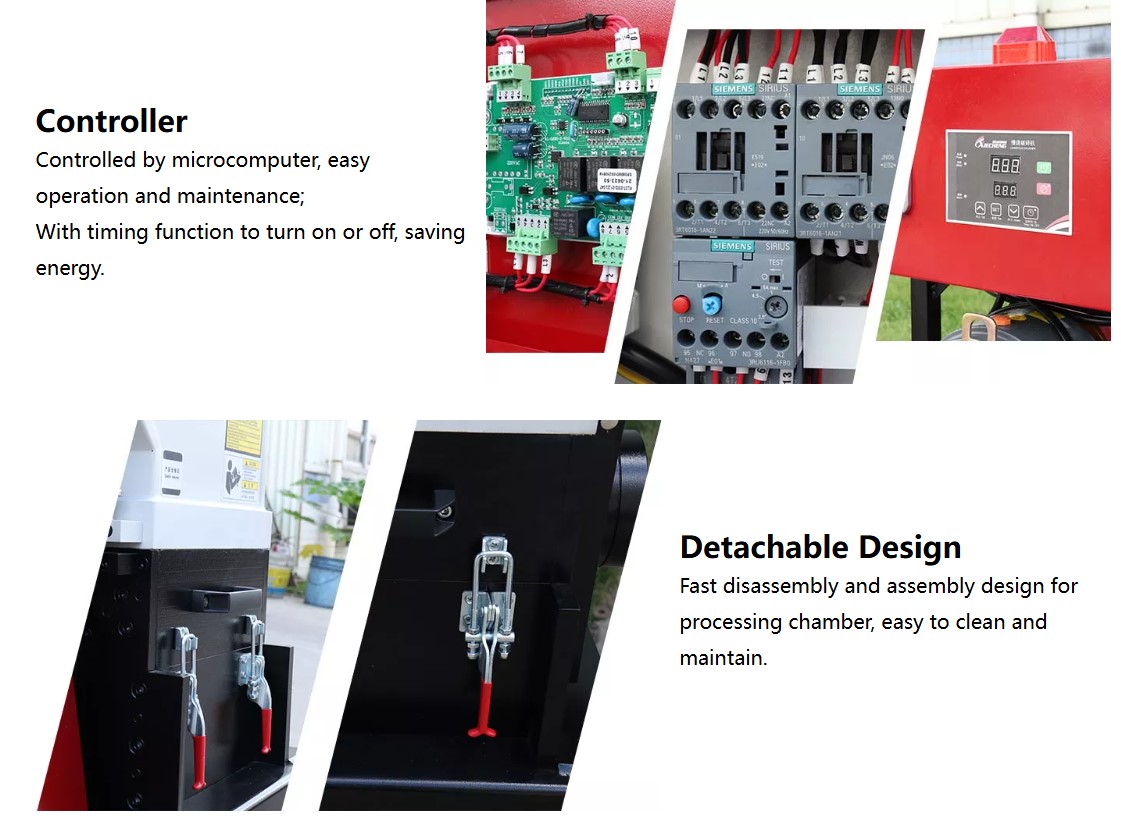

4. Controlled by microcomputer, easy operation and maintenance;

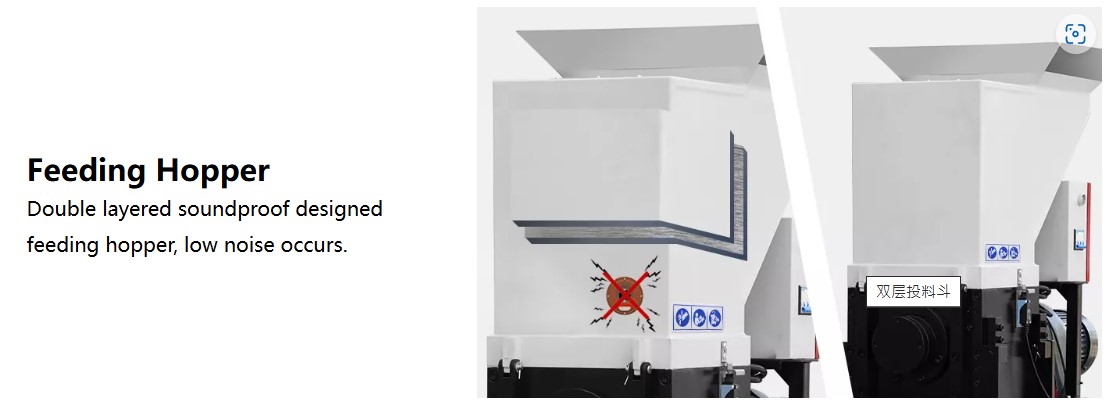

5. Double layered soundproof designed feeding hopper, low noise occurs;
6. Fast disassembly and assembly design for processing chamber, easy to clean and maintain;
7. With multiple protections as phase sequence protection, overload protection, limit protection, etc.
8. Configuration is optional on active or passive collecting;
Parameters of Volumetric Doser:
|
Model |
XC-GO1HP |
XC-GO2HP |
XC-GO3HP |
XC-GO1HPRC |
XC-GO2HPRC |
XC-GO3HPRC |
||
|
Feeding Hopper Size (mm) |
505*360 |
505*470 |
505*580 |
505*360 |
505*470 |
505*580 |
||
|
Grinding Chamber (mm) |
310*200 |
310*310 |
310*420 |
310*200 |
310*310 |
310*420 |
||
|
Grinding Capacity (kg) |
10-15 |
20-25 |
22-27 |
10-15 |
20-25 |
22-27 |
||
|
Power |
KW |
1.1 |
1.5 |
2.2 |
1.1 |
1.5 |
2.2 |
|
|
Stationary cutter (piece) |
4 |
6 |
8 |
4 |
6 |
8 |
||
|
Teeth Cutter (piece) |
2 |
3 |
4 |
2 |
3 |
4 |
||
|
Hook Cutter (piece) |
1 |
2 |
3 |
1 |
2 |
3 |
||
|
Dimensions (LxWxH) |
945*570*1315 |
1055*570*1315 |
1200*570*1315 |
945*570*1315 |
1055*570*1315 |
1200*570*1315 |
||
|
Spindle Speed (R/min) |
25 |
25 |
25 |
25 |
25 |
25 |
||
|
Conveying Blower (KW) |
∕ |
∕ |
∕ |
0.37KW |
0.37KW |
0.37KW |
||
|
Note |
should be used with auto loader and proportional valve |
equipped with recycled system |
||||||
