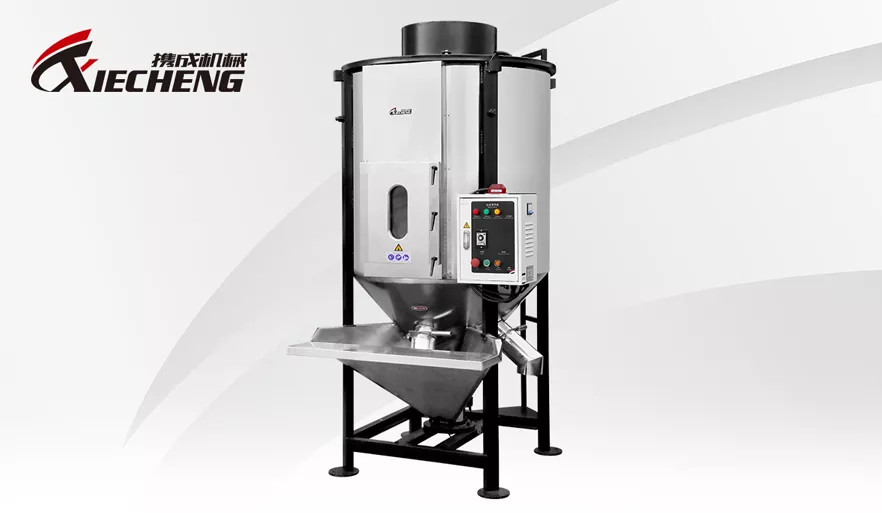

VERTICAL BLENDER
Mixing Series
FEATURE:

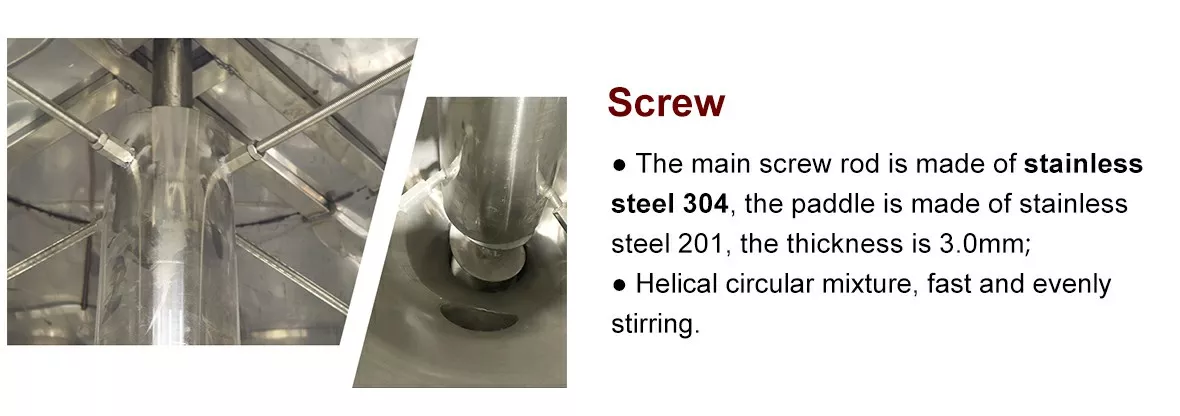

1. Helical circular mixture, fast and evenly stirring;
2. Suitable for all kinds of plastic raw materials and color masterbatch or granules;

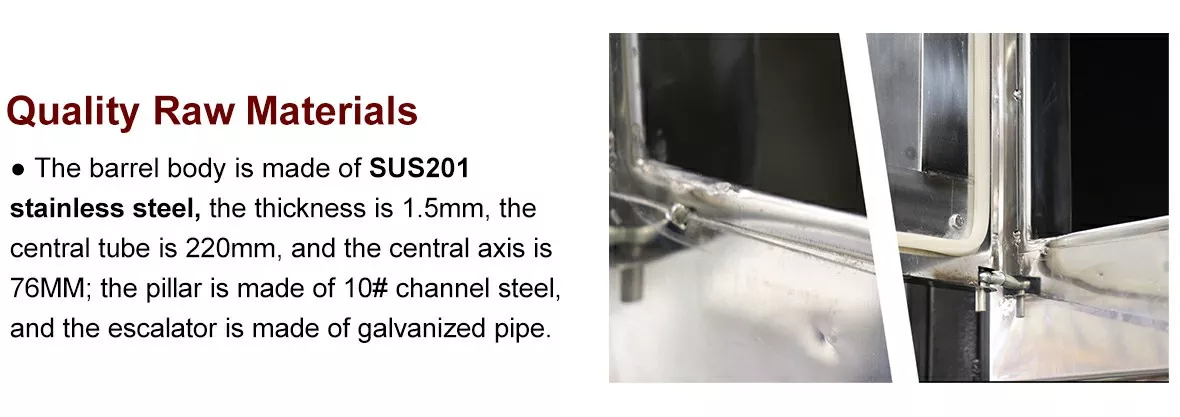

3. Fully stainless steel contacting parts, rust free and easy to clean;

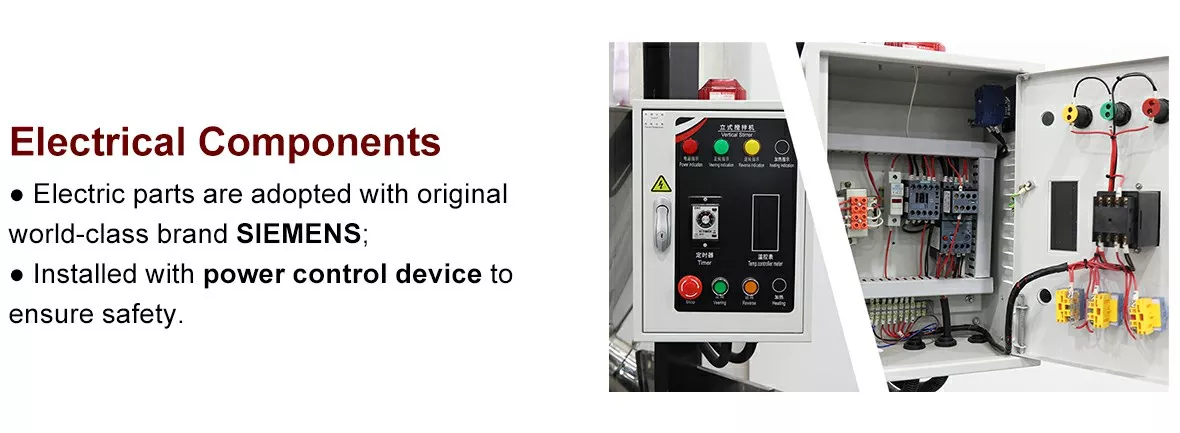

4. Installed with power control device to ensure safety;
5. Equipped with heating and drying function for optional : double layer thermal insulation Euro heating box to reduce heat loss, tank surface with low temperature, energy saving and safety, used medium pressure blower with larger air volume;
6. Easy maintenance;
| Model | Power | Capacity (KG) | Voltage | Dimensions (mm) | Height of Hopper(mm) | Rotating Speed(R/min) | Heating Power(KW) | Blower (KW) | Net Weight (kg) | |
| KW | HP | |||||||||
| XC-JB500L | 2.2 | 3 | 500 | 380/3φ | 1210*1480*2425*520 | 660 | 300 | 12 | 0.32 | 450 |
| XC-JB1000L | 3 | 4 | 1000 | 380/3φ | 1636*1800*3070*705 | 810 | 300 | 18 | 1 | 630 |
| XC-JB2000L | 4 | 5 | 2000 | 380/3φ | 1930*2035*3650*680 | 825 | 300 | 30 | 1.5 | 1050 |
| XC-JB3000L | 5.5 | 7.5 | 3000 | 380/3φ | 2375*2420*3670*700 | 845 | 300 | 38 | 2.2 | 1250 |
| XC-JB5000L | 7.5 | 10 | 5000 | 380/3φ | 2375*2420*4560*700 | 845 | 300 | 38 | 2.2 | 1500 |
