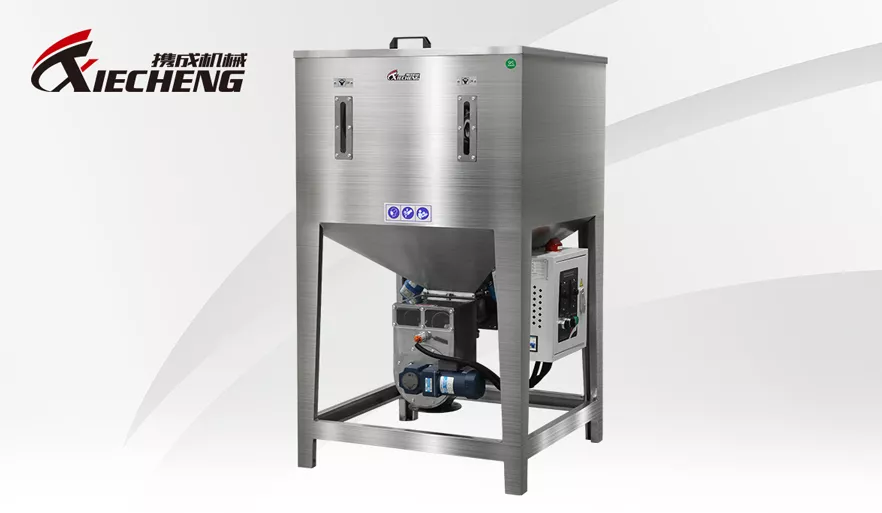

Volumetric Ratio of Two Feed Mixer
Mainly utilized for mixing with certain proportion of raw material and recycled material, or two different types raw materials.
 |

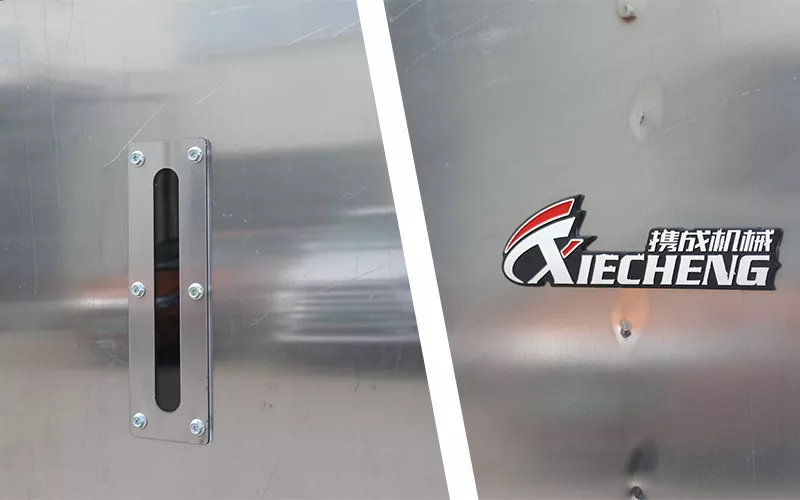

Barrel Part SUS201 barrel part ensures no contamination on raw materials |
|

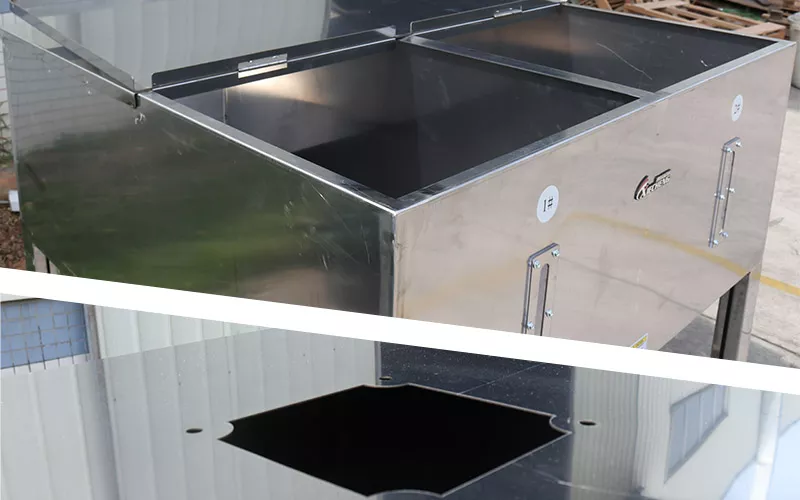

Hopper Design Storage barrel divided as Hopper 1 and Hopper 2; Each hopper could be mounted with vacuum receiver or self-contained loaders. |
 |
 |

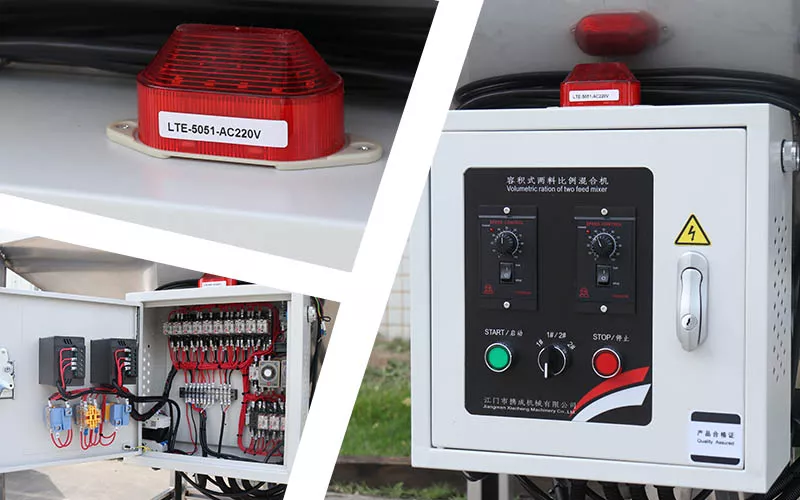

Volumetric Screw Dosing Devices Equipped with two sets of volumetric screw dosing devices for accuracy of material providing; Default with level sensor, buzzer and lamp alarm for material shortage alerting. |
|

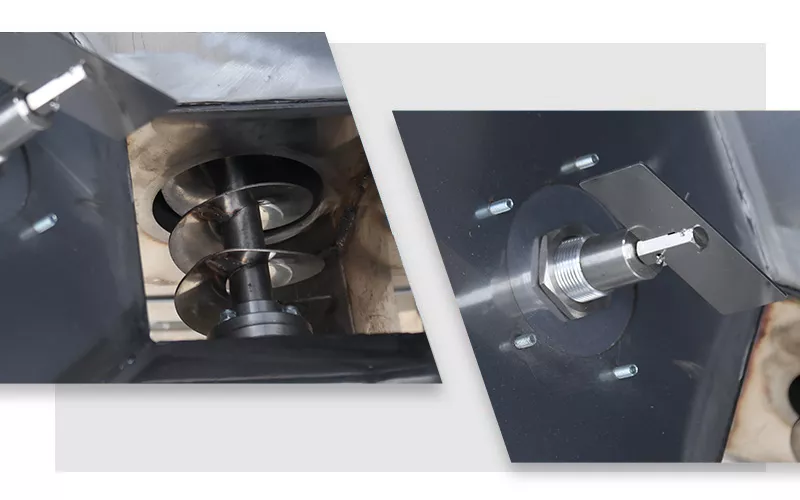

Screw Material With stainless steel made screws to keep consistency of raw materials |
 |
 |

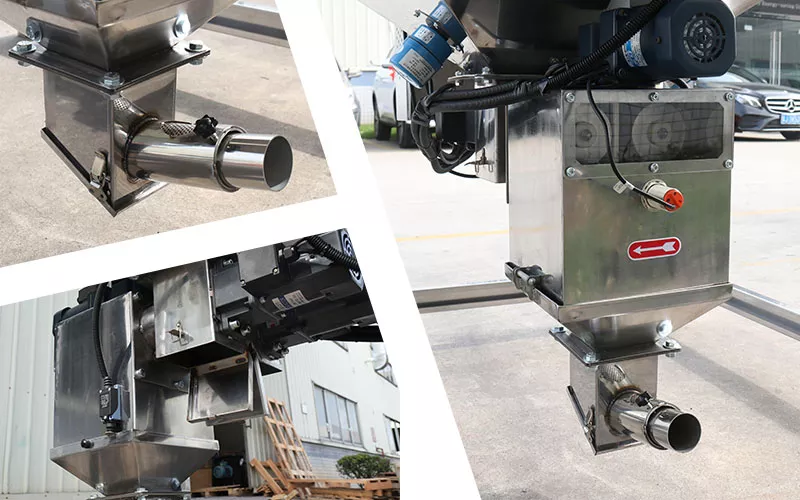

Suction Box Default with suction box for connection with auto loader |
 |

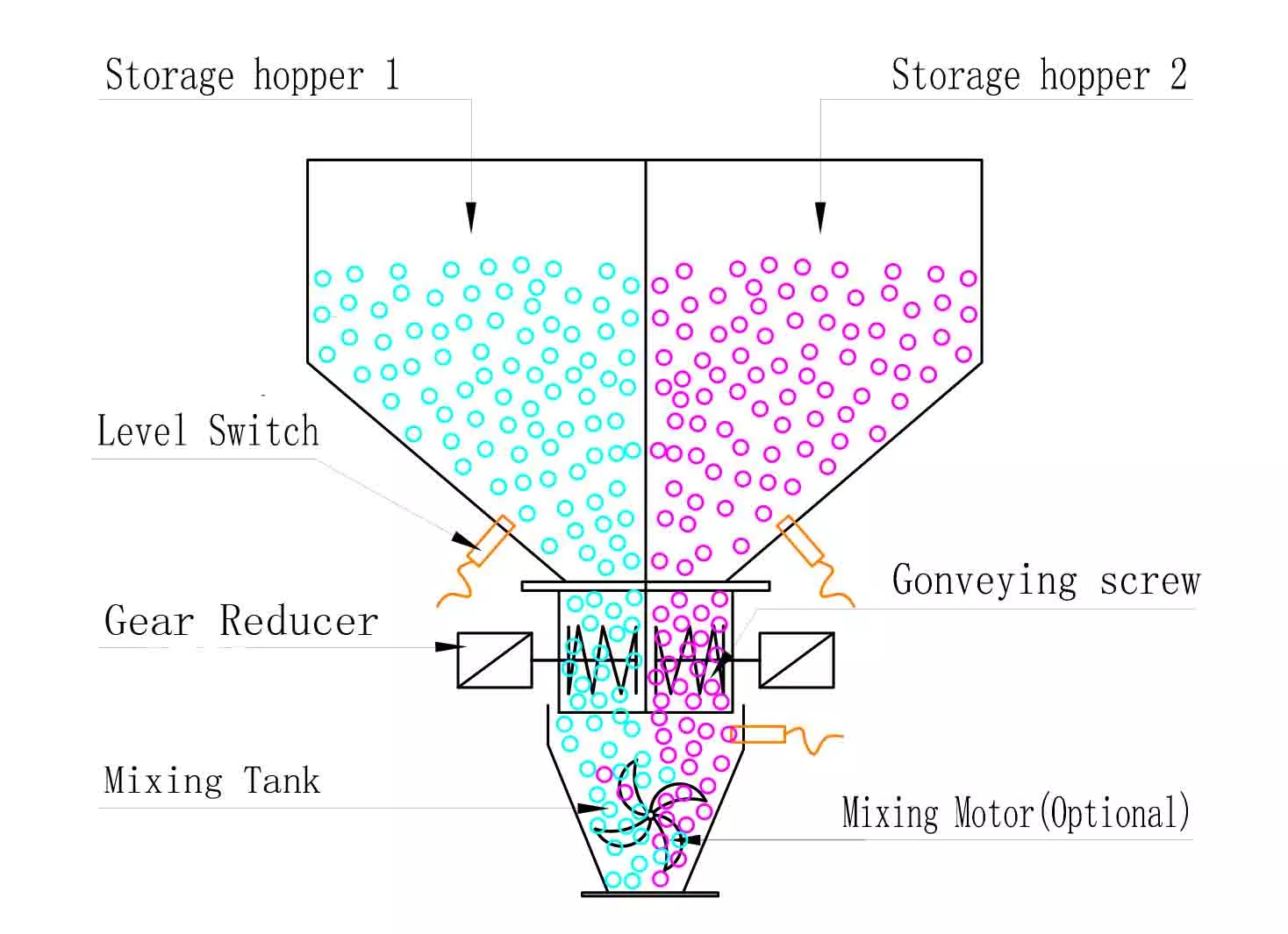

Working Principle After material loaded in hoppers, set the speed ratio of materials. Switch to 1#/2# and turn on power, the geared motor drives the screw and feeds material into mixing chamber. When level switch at mixing chamber detects full loaded, the screw stops feeding and the mixing motor (optional) delay-stops. When material in short the geared motor automatically runs again and release material |
| Model | Screw motor power(W) | Mixing motor power(W) | Screw diameter(mm) |
1#Hopper Capacity(L) |
2#Hopper Capacity(L) |
Max capacity(kg/hr) |
Tube diameter(inch) |
Dimensions(mm) W*D*H*H1 |
| XC-VTM50-160U | 60+60 | 90 | 50 | 80 | 80 | 480~850 | 1.5~2.5 | 710*710*1090x197 |
| XC-VTM50-320U | 160 | 160 | 810*810*1420x197 | |||||
| XC-VTM70-720U | 90+90 | 70 | 360 | 360 | 800~1450 | 1010*1010*1530x197 | ||
| XC-VTM70-1200U | 600 | 600 | 1210*1210*1750x197 |
