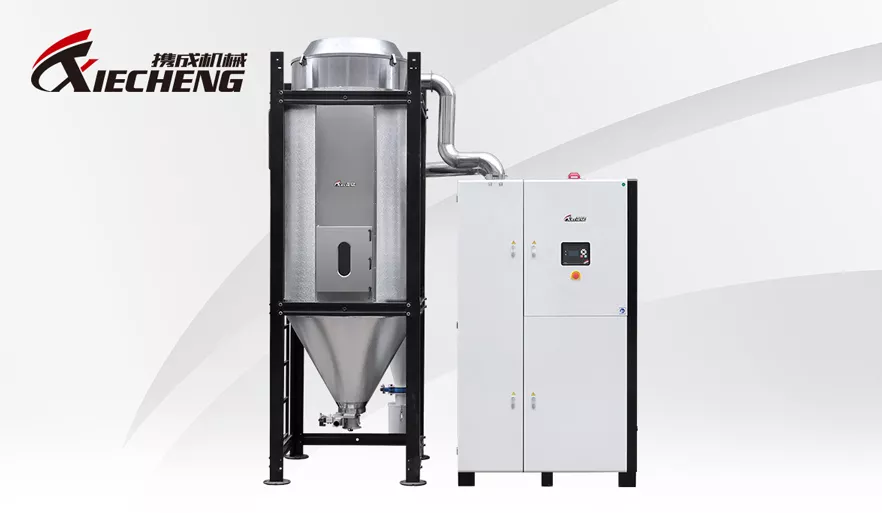

2IN1 HONEYCOMB DEHUMIDIFIER



Drying Dehumidifying Series



FEATURE:

1. The XCD series dehumidifying dryer combine a dehumidifying and drying system in a singleunit. They are suitable for all kinds of plastics, especially for drying hygroscopic engineeringplastics, such as PA, PC, PBT, PET, etc;

2. lt can be reach dew point -40 Celsius under ideal condition. XCD Series are combined withhoneycomb rotor and down blowing fully stainless steel euro hopper dryer.

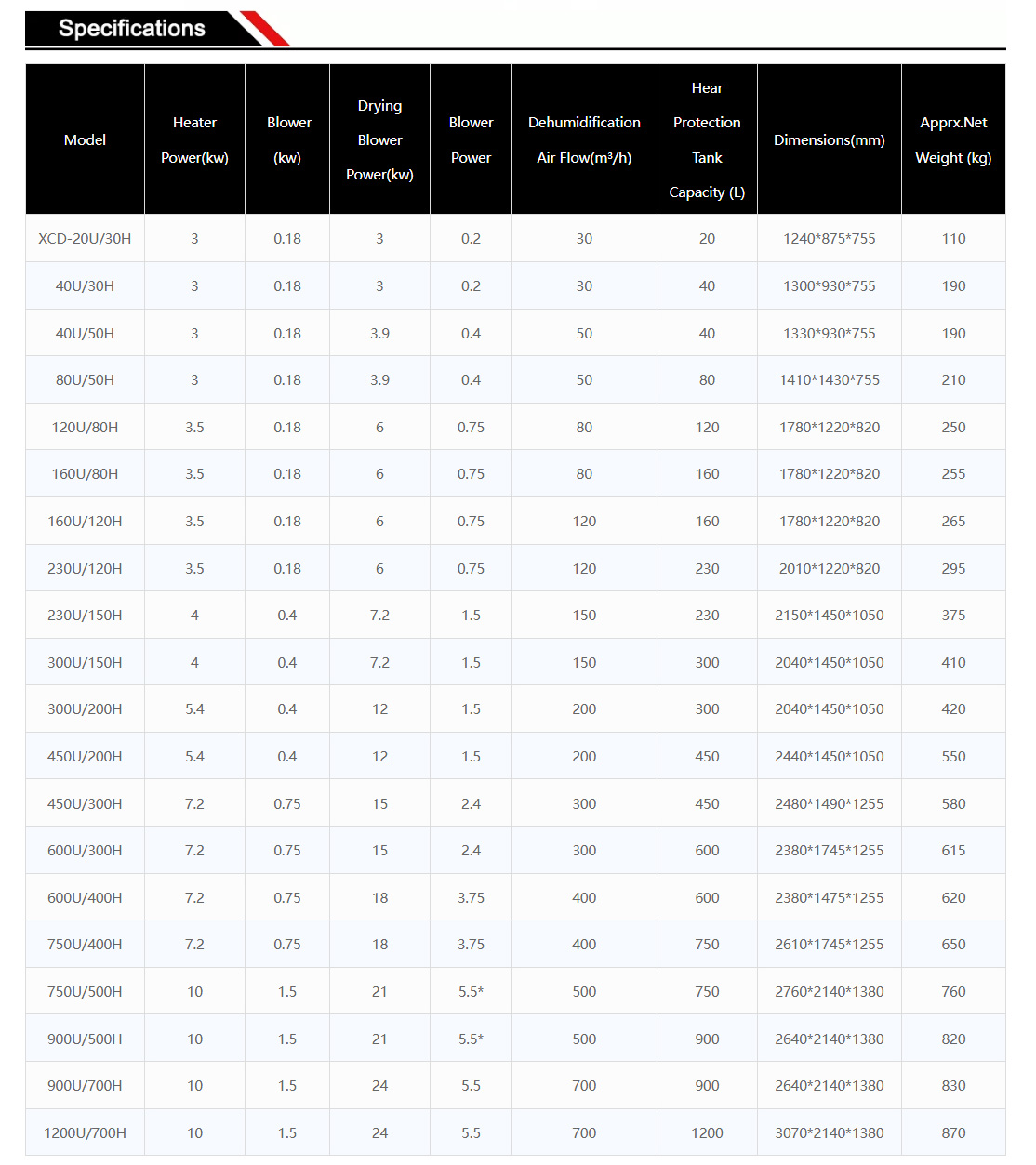

Model Heater Power(kw)  Blower (kw) Drying Blower Power(kw) Blower Power Dehumidification Air Flow(m³/h) Hear Protection Tank Capacity (L) Dimensions(mm) Apprx.Net Weight (kg)
XCD-20U/30H 3 0.18 3 0.2 30 20 1240*875*755 110
40U/30H 3 0.18 3 0.2 30 40 1300*930*755 190
40U/50H 3 0.18 3.9 0.4 50 40 1330*930*755 190
80U/50H 3 0.18 3.9 0.4 50 80 1410*1430*755 210
120U/80H 3.5 0.18 6 0.75 80 120 1780*1220*820 250
160U/80H 3.5 0.18 6 0.75 80 160 1780*1220*820 255
160U/120H 3.5 0.18 6 0.75 120 160 1780*1220*820 265
230U/120H 3.5 0.18 6 0.75 120 230 2010*1220*820 295
230U/150H 4 0.4 7.2 1.5 150 230 2150*1450*1050 375
300U/150H 4 0.4 7.2 1.5 150 300 2040*1450*1050 410
300U/200H 5.4 0.4 12 1.5 200 300 2040*1450*1050 420
450U/200H 5.4 0.4 12 1.5 200 450 2440*1450*1050 550
450U/300H 7.2 0.75 15 2.4 300 450 2480*1490*1255 580
600U/300H 7.2 0.75 15 2.4 300 600 2380*1745*1255 615
600U/400H 7.2 0.75 18 3.75 400 600 2380*1475*1255 620
750U/400H 7.2 0.75 18 3.75 400 750 2610*1745*1255 650
750U/500H 10 1.5 21 5.5* 500 750 2760*2140*1380 760
900U/500H 10 1.5 21 5.5* 500 900 2640*2140*1380 820
900U/700H 10 1.5 24 5.5 700 900 2640*2140*1380 830
1200U/700H 10 1.5 24 5.5 700 1200 3070*2140*1380 870
