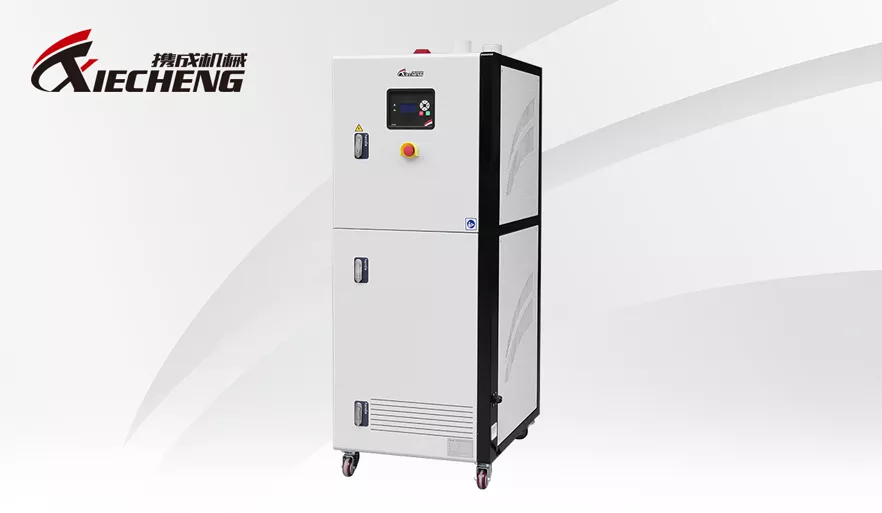

HONEYCOMB DEHUMIDIFIER
Drying Dehumidifying Series
1. XC-D series honeycomb dehumidifiers are mainly used to dry hygroscopic engineering plastics.

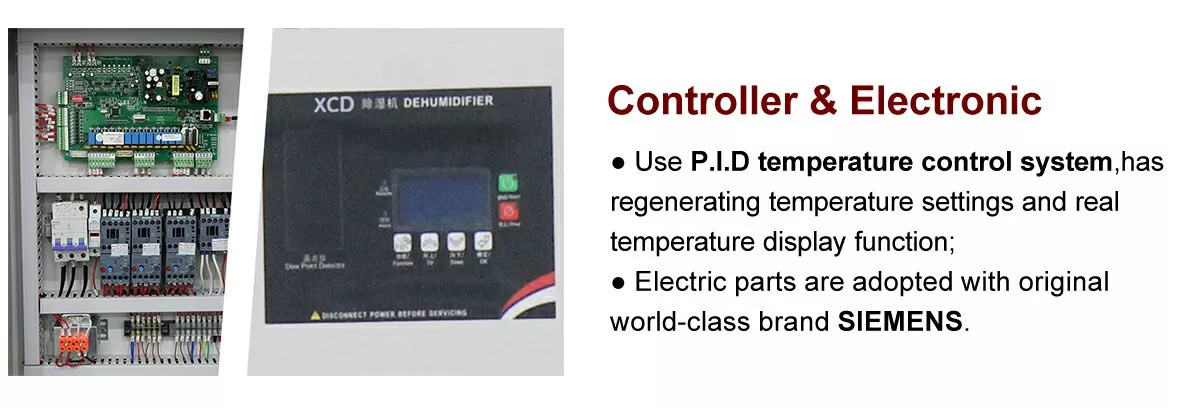

2. A honeycomb-rotor is used in this series to offer effective drying.under ideal conditions,can supply dehumidified dry air with a dew-point down to-40 Celsius.The XC-D series offersaccurate P.l.D temperature control as standard,with LCD touch screen and dew-point monitor asoptional features.
3. This series comprises 14 models of honeycomb dehumidifiers,the largest of which can provide dry air up to a volume of 4000m3/hr;
| Model | XC-D30H | XC-D50H | XC-D80H | XC-D120H | XC-D150H | XC-D200H | XC-D300H | XC-D400H | XC-D500H | XC-D700H | XC-D1000H | XC-D1500H | XC-D2000H | XC-D3000H | |
| Process Air Flow(m³/hr) | 30 | 50 | 80 | 120 | 150 | 200 | 300 | 400 | 500 | 700 | 1000 | 1500 | 2000 | 3000 | |
| Process Blower (kw) | 0.4 | 0.4 | 0.75 | 0.75 | 1.5 | 2.2 | 3.75 | 3.75 | 5.5 | 5.5 | 7.5 | 7.5 | 5.5x2 | 7.5x2 | |
| Regen Blower (kw) | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.75 | 0.75 | 1.5 | 1.5 | 3 | 4 | 3x2 | 4x2 | |
| Regen Heater (kw) | 3 | 3 | 3.5 | 3.5 | 4 | 5.4 | 7.2 | 7.2 | 10 | 10 | 15 | 10x2 | 15x2 | 24x2 | |
| Pipe Dia. (mm) | 2" | 2" | 2.5" | 2.5" | 3" | 3" | 3" | 4" | 4" | 4" | 5" | 6" | 6" | 8" | |
| Voltage | 3Φ, 400V,50Hz | ||||||||||||||
| Demensions | |||||||||||||||
| H(mm) | 1670 | 1670 | 1670 | 1730 | 1730 | 1970 | 1970 | 1970 | 1950 | 1950 | 2210 | 2250 | 2270 | 2270 | |
| W (mm) | 560 | 560 | 560 | 650 | 650 | 700 | 700 | 750 | 940 | 940 | 2250 | 2250 | 2210 | 2250 | |
| D(mm) | 710 | 710 | 710 | 900 | 900 | 1200 | 1200 | 700 | 1630 | 1630 | 1300 | 1300 | 2210 | 1950 | |
| Weight (kg) | 120 | 120 | 120 | 140 | 215 | 225 | 240 | 280 | 290 | 300 | 1330 | 1330 | 1330 | 760 | |
| Cooling Water Pipe Diameter | 3/4' | 3/4' | 3/4' | 3/4' | 3/4' | 3/4' | 3/4' | 3/4' | 3/4' | 3/4' | 2' | 2' | 2' | 2' | |
