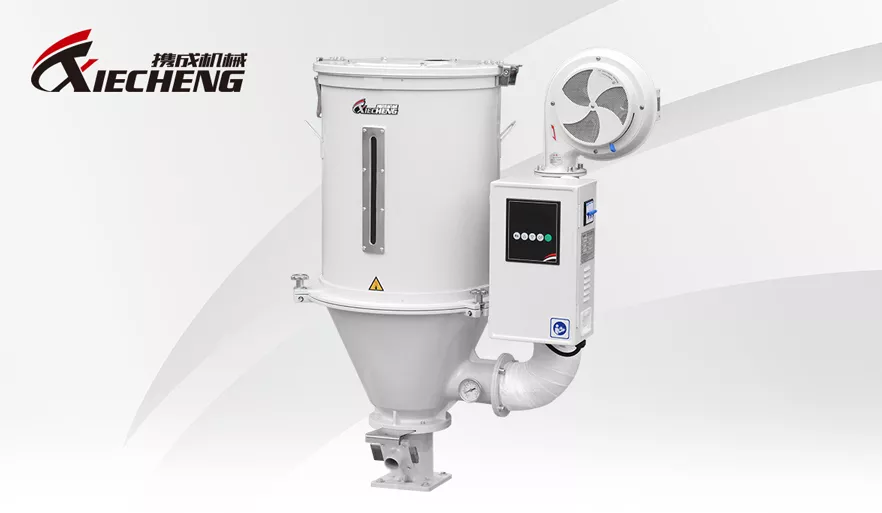

STANDARD HOPPER DRYERS
Drying Dehumidifying Series
FEATURE:
1. Contact parts made of stainless steel;
2. Precisely cast aluminum hull, smooth surface and good performance of maintaining tempera
ture setting;
3. Material tank installed with side glass for inspection;
4. eInstalled with proportional deviation display thermostat, to control temperature accurately;
5. High-temperature type for 50-1500kg available, with double layer hopper tank, stainless steel heating cylinder, cooling type heater, high temperature resistance blower;
 |

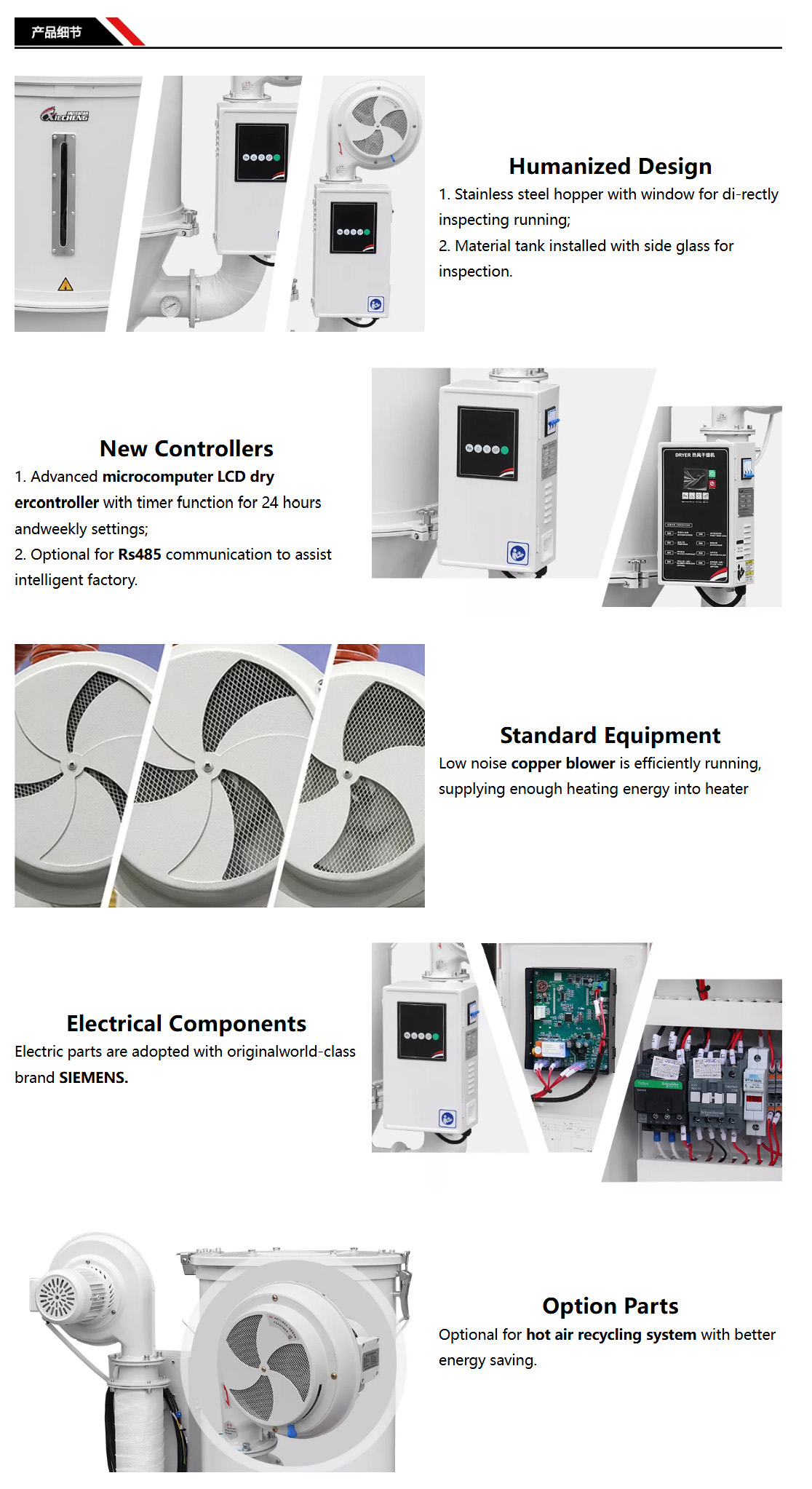

Humanized Design
1. Stainless steel hopper with window for di-rectly inspecting running; 2. Material tank installed with side glass for inspection. |
|
New Controllers
1. Advanced microcomputer LCD dry ercontroller with timer function for 24 hours andweekly settings; 2. Optional for Rs485 communication to assist intelligent factory. |
 |
 |
Standard Equipment Low noise copper blower is efficiently running, supplying enough heating energy into heater |
|
Electrical Components Electric parts are adopted with originalworld-class brand SIEMENS. |
 |
 |
Option Parts Optional for hot air recycling system with better energy saving. |
|

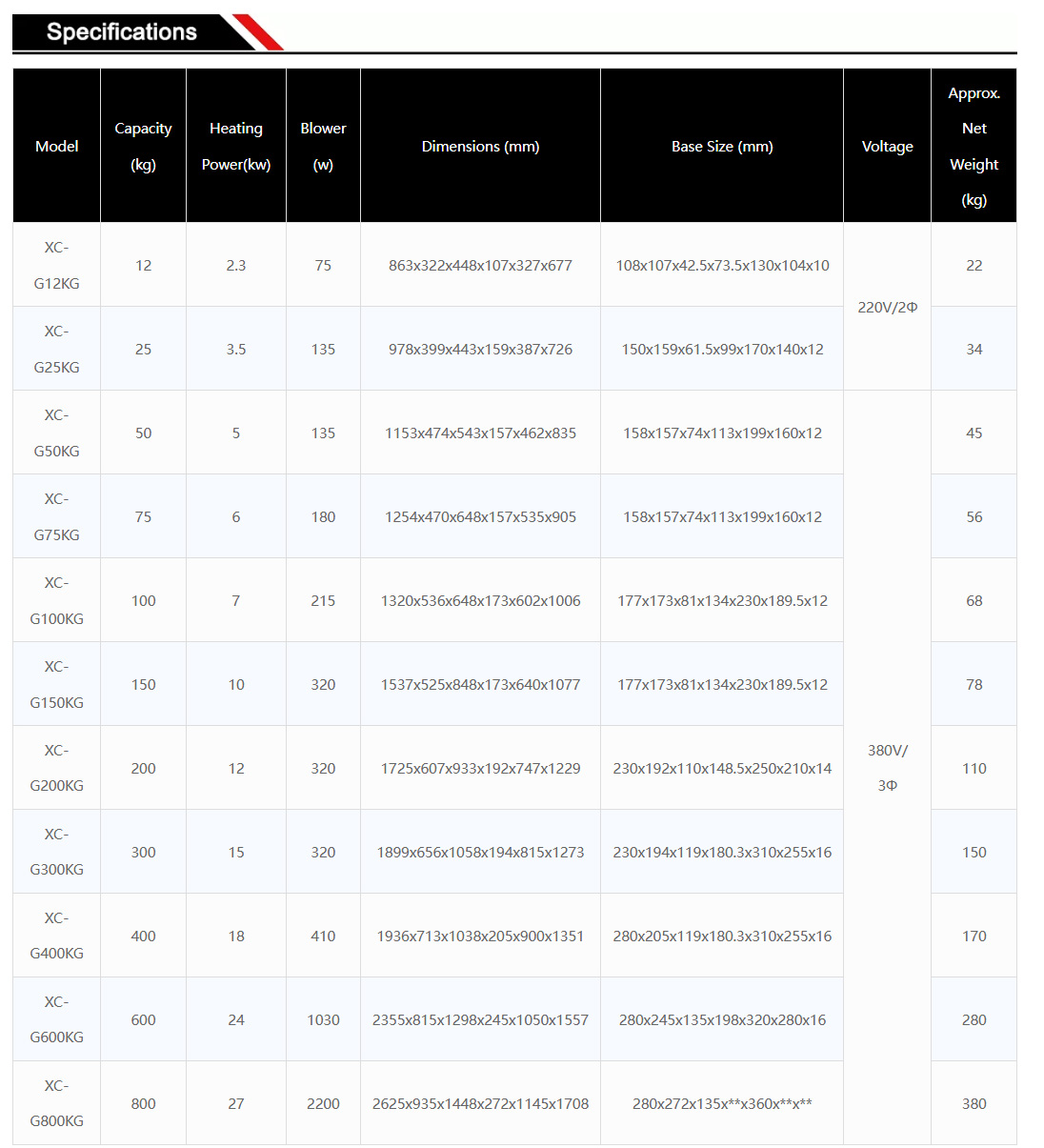

Model |
Capacity (kg) |
Heating Power(kw) |
Blower (w) |
Dimensions (mm) |
Base Size (mm) |
Voltage |
Approx. Net Weight (kg) |
||
|
XC-G12KG |
12 |
2.3 |
75 |
863x322x448x107x327x677 |
108x107x42.5x73.5x130x104x10 |
220V/2Φ |
22 |
||
|
XC-G25KG |
25 |
3.5 |
135 |
978x399x443x159x387x726 |
150x159x61.5x99x170x140x12 |
34 |
|||
|
XC-G50KG |
50 |
5 |
135 |
1153x474x543x157x462x835 |
158x157x74x113x199x160x12 |
380V/ 3Φ |
45 |
||
|
XC-G75KG |
75 |
6 |
180 |
1254x470x648x157x535x905 |
158x157x74x113x199x160x12 |
56 |
|||
|
XC-G100KG |
100 |
7 |
215 |
1320x536x648x173x602x1006 |
177x173x81x134x230x189.5x12 |
68 |
|||
|
XC-G150KG |
150 |
10 |
320 |
1537x525x848x173x640x1077 |
177x173x81x134x230x189.5x12 |
78 |
|||
|
XC-G200KG |
200 |
12 |
320 |
1725x607x933x192x747x1229 |
230x192x110x148.5x250x210x14 |
110 |
|||
|
XC-G300KG |
300 |
15 |
320 |
1899x656x1058x194x815x1273 |
230x194x119x180.3x310x255x16 |
150 |
|||
|
XC-G400KG |
400 |
18 |
410 |
1936x713x1038x205x900x1351 |
280x205x119x180.3x310x255x16 |
170 |
|||
|
XC-G600KG |
600 |
24 |
1030 |
2355x815x1298x245x1050x1557 |
280x245x135x198x320x280x16 |
280 |
|||
|
XC-G800KG |
800 |
27 |
2200 |
2625x935x1448x272x1145x1708 |
280x272x135x**x360x**x** |
380 |
