Product Description

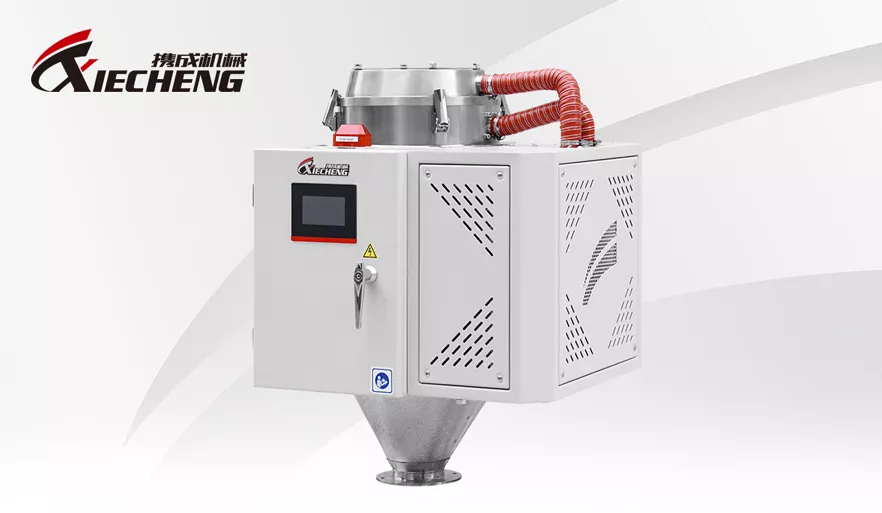

Small dehumidification dryer
| Feature:
1. Adopted molecularsieve honeycomb runnerdesign, it canimprove dry air with stable low dew point (≤-40'C) under ideal conditions;
2. Super energy-saving and intelligent design, can automatically adjust the air volume and temperature, according to the settings of raw materials and output, the raw materials will not be over-dried and the dryness and temperature of the raw materials can be maintained at alltimes;
3. Contactsurface is made of #304 stainless steel, and the surface is mirror-finished, to ensure the raw materials are not polluted.;
4. Double-layer insulation design, interlayeris made ofthickened insulation materials, can ensure uniform temperature, less heat loss, more energy-saving and environmentally friendly;
5. LCD display microcomputer controller, temperature control accuracy can reach ±0.1°c, equipped with a 24-hour timing function aweek, realizing automatic operation of the whole machine by appointment;
6. Optional dew point meter to facilitate real-time monitoring of dew point;
7. Optional communication function to realize automated remote management;
| Specifications
| Model | MDD20L/20H | MDD40L/20H | MDD80L/30H |
| Drying Electric Heating Power (Kw) | 0.85 | 1 | 1.2 |
| Drying Blower Power(KW) | 0.2 | 0.2 | 0.2 |
| Regen Electric Heating Power (KW) | 1.2 | 1.2 | 1.2 |
| Regen Blower Power(kW) | 0.18 | 0.18 |
0.18 |
| Dry Air Capacity(m³/hr) | 20 | 20 | 30 |
| Hopper Volume(L) | 20 | 40 | 80 |
| Voltage | 230V/50HZ/1P | 230V/50HZ/1P | 230V/50HZ/1P |
| Design Drying TEMP(°C) | 140 | 140 | 140 |
| Dimension(mm) | |||
| H | 880 | 1080 | 1150 |
| W | 630 | 650 | 680 |
| D | 590 | 610 | 660 |
