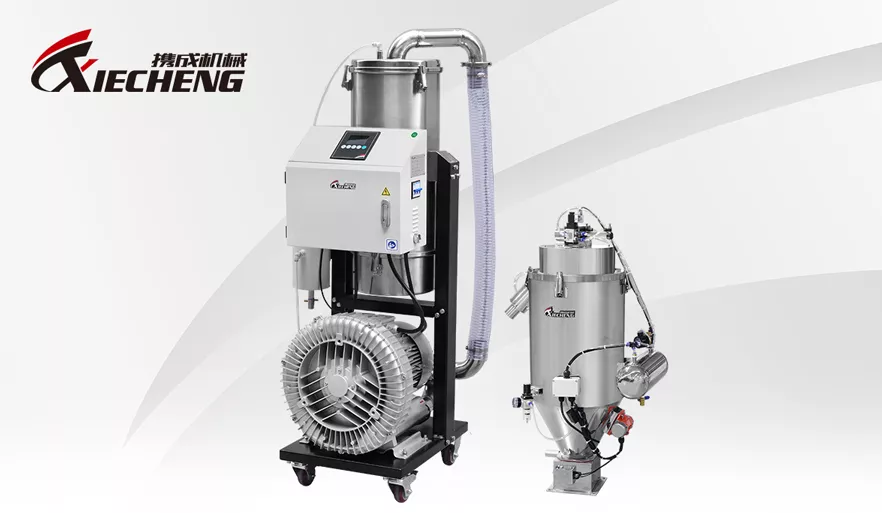

POWER AUTO LOADER
Feeding & Conveying Series
FEATURE:
The powder loaders in this series adopt vacuum suction, capable of transporting general particles and powders (with diameter larger than one micron) from storage into subject equipment. The loaders could be used for moulding or forming machine, mixing system and chemical processing equipment, completely saving labor costs and being ideal environmental choice for powder conveying.
| Model | XC-XF5HP | XC-XF7.5HP | XC-XF10HP | XC-XF15HP |
| Conveying Capacity (kg/hr) | 400 | 600 | 800 | 1000 |
| Hopper Practical Capacity (L) | 40 | 40 | 60 | 60 |
| Vortex Pump Power (Hp) | 4 | 5.5 | 7.5 | 11 |
| Vortex Pump Voltage (V) | 220~440V/50~60HZ/3P | |||
| SuctionTube Diamete(mm) | 51 | 51 | 63 | 63 |
| Absorb Tube Diameter (mm) | 38/51 | 51/63 | 51/63 | |
