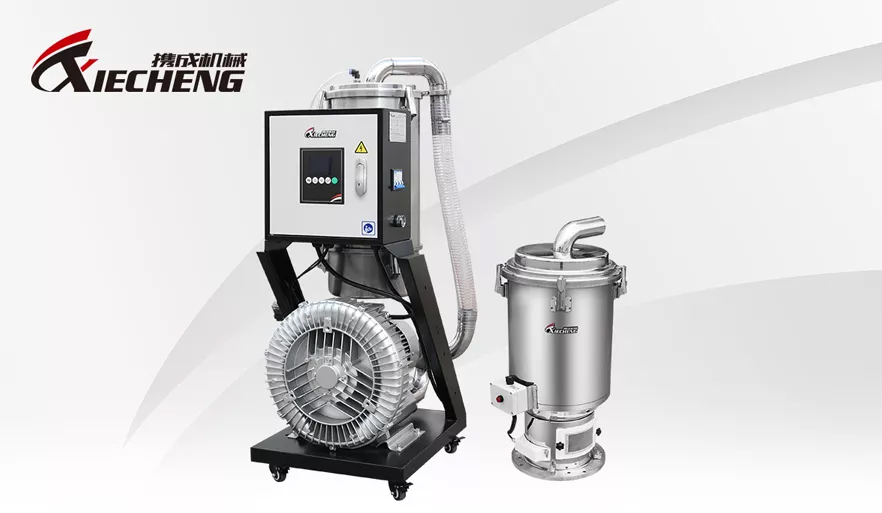

SEPARATE-VACUUM HOPPER LOADER
Feeding & Conveying Series



Structure Diagram

Specifications
Model | XCAL-1.5HP | XCAL-2HP | XCAL-3HP | XCAL-5HP | XCAL-7.5HP | XCAL-10HP | XCAL-15HP | |
Motor | 1.5 /1.1 | 2/1.5 | 3/2.2 | 5/3.75 | 7.5/5.5 | 10/7.5 | 15/11 | |
Conveying Capacity (kg/hr) | 450 | 500 | 590 | 820 | 1000 | 1300 | 1500 | |
Loading Distance (m) | 5 | 5 | 5 | 5 | 6 | 6 | 6 | |
Static Wind Pressure (mm/H2O) | 2800 | 2800 | 2800 | 3200 | 4200 | 4500 | 4500 | |
Storage Tank Capacity (L) | 7.5 | 7.5 | 12 | 24 | 30 | 30 | 30 | |
Conveying Tube Inner Diameter(mm) | φ38 | φ38 | φ51 | φ51 | φ63 | φ63 | φ63 | |
Specification of the Attached Hoses | φ38mm×8m 1pc | φ38mm×8m 1pc | φ51mm×10m 1pc | φ51mm×10m 1pc | φ63mm×12m 1pc | φ63mm×12m 1pc | φ63mm×12m 1pc | |
Dimensions (cm) | Host | 50x42x109 | 69x52x144 | 99x85x142 | ||||
hopper | 38x28x45 | 38x28x45 | 43x33x58 | 43x33x69 | 43x33x83 | |||
Approx. Net Weight(kg) | 56 | 56 | 68 | 81 | 137 | 152 | 168 |
