product description

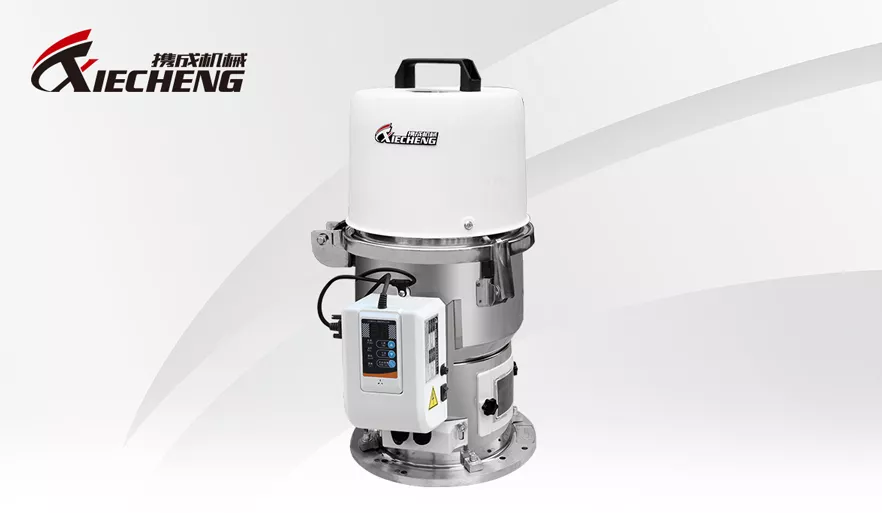

EURO-AUTO LOADER
FEATURE:

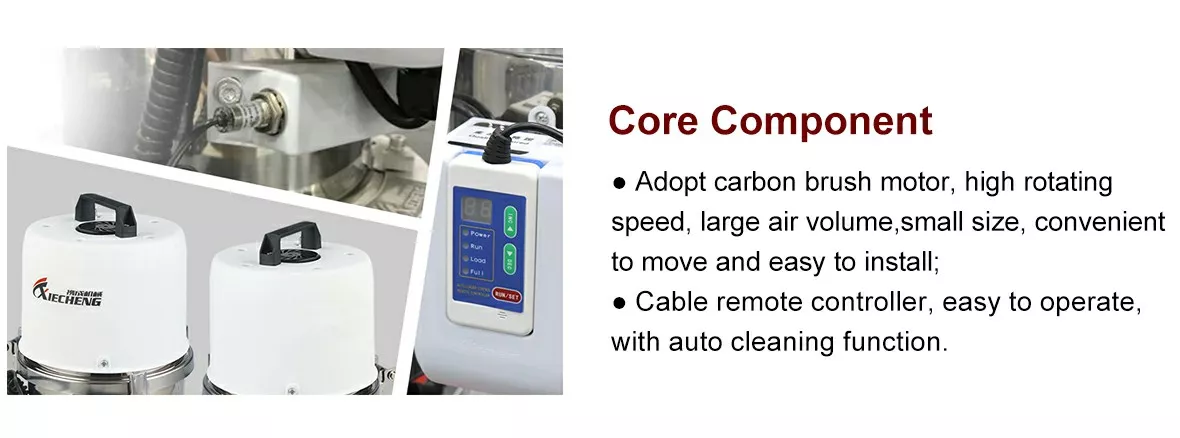

1. Adopt carbon brush motor, high rotating speed, large air volume, small size, convenient to move and easy to install;
2. Cable remote controller, easy to operate, with auto cleaning function;

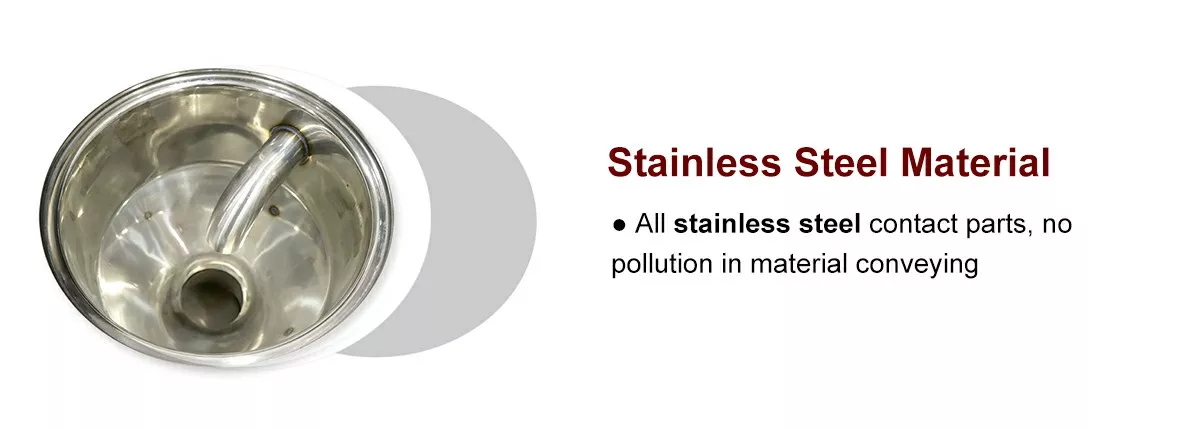

3. All stainless steel contact parts, no pollution in material conveying;

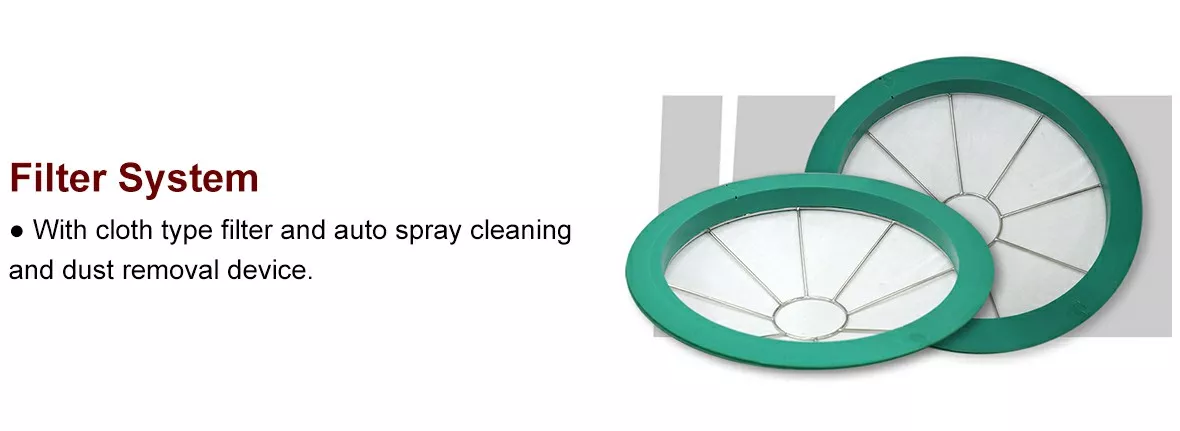

4. With cloth type filter and auto spray cleaning and dust removal device;

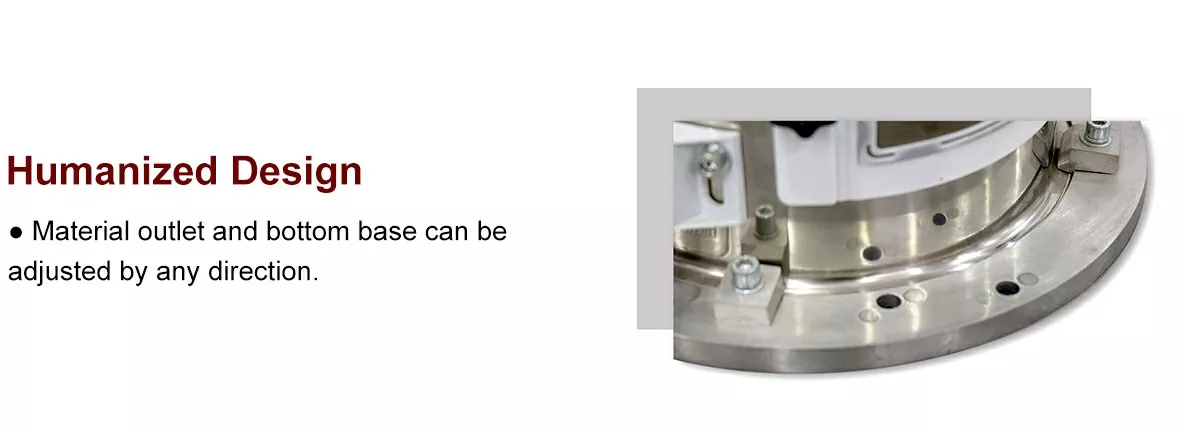

5. Material outlet and bottom base can be adjusted by any direction;
6. Adopt magnetic reed switch, sensitive sensor, reliable quality.
|
Model |
XC-VAL300G |
|
|
Motor |
Model |
Carbon Brush |
|
Specification |
1.1kw/1.3hp 1φ |
|
|
Conveying Capacity (kg/hr) |
300 |
|
|
Loading Distance(m) |
3.5 |
|
|
Static Wind Pressure (mm/H2O) |
1300 |
|
|
Storage Tank Capacity (L) |
6 |
|
|
Conveying Tube Inner Diameter(mm) |
φ38 |
|
|
Specification of the Attached Hoses |
φ38mm×4m 1pc |
|
|
Dimensions L x W x H(cm) |
39x29x56 |
|
|
Weight (kg) |
14 |
|
